Circuit Diagram

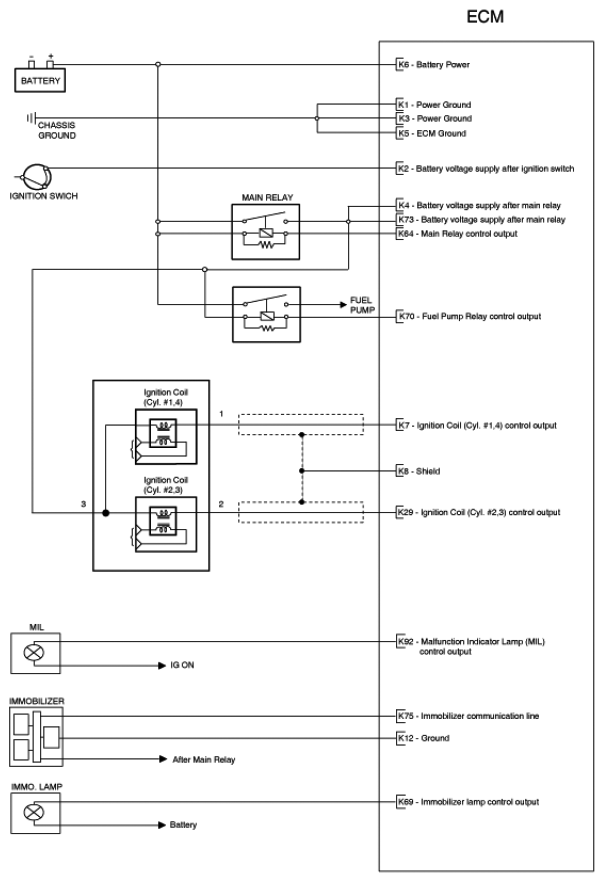

Fig 1: ECM Circuit Diagram (1 Of 4)
G06863140Courtesy of HYUNDAI MOTOR CO.

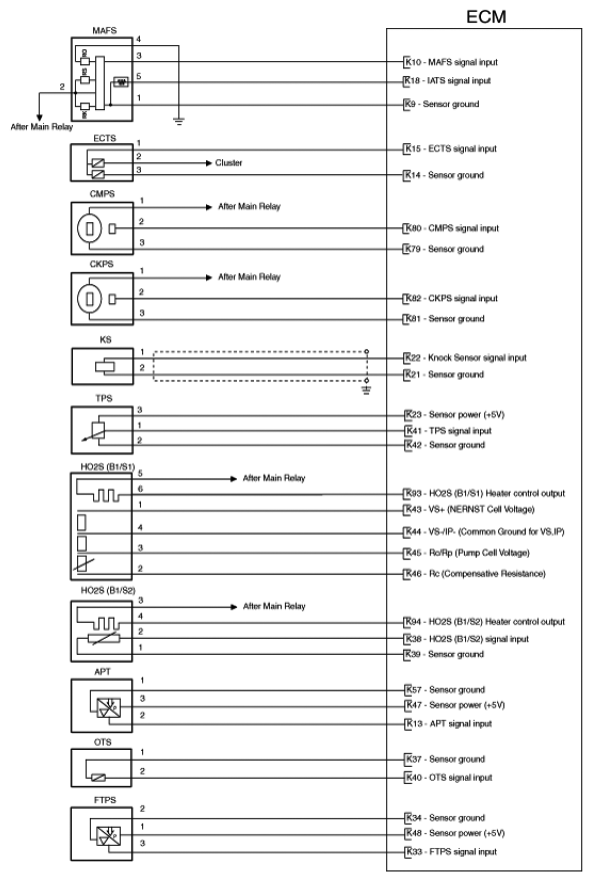

Fig 2: ECM Circuit Diagram (2 Of 4)
G06863141Courtesy of HYUNDAI MOTOR CO.

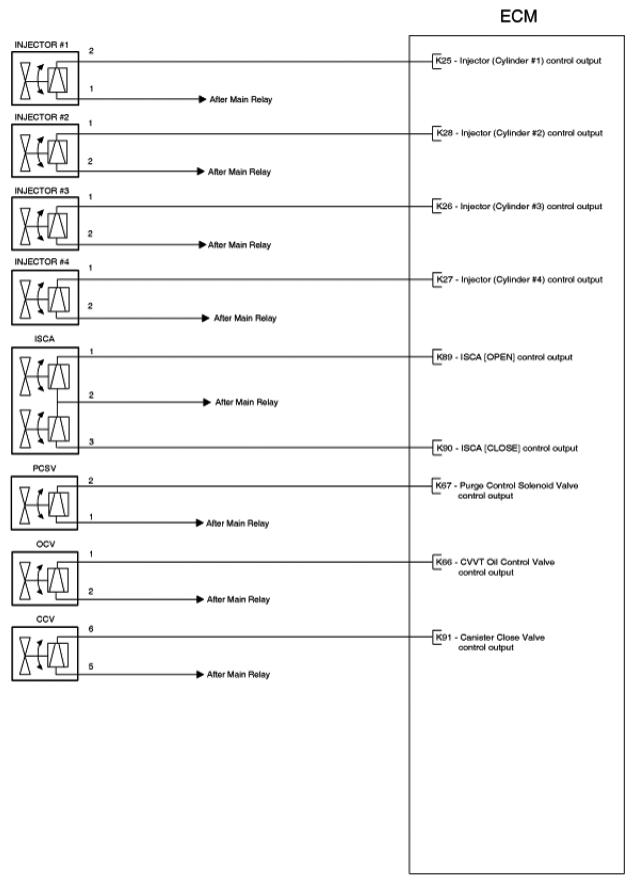

Fig 3: ECM Circuit Diagram (3 Of 4)
G06863142Courtesy of HYUNDAI MOTOR CO.

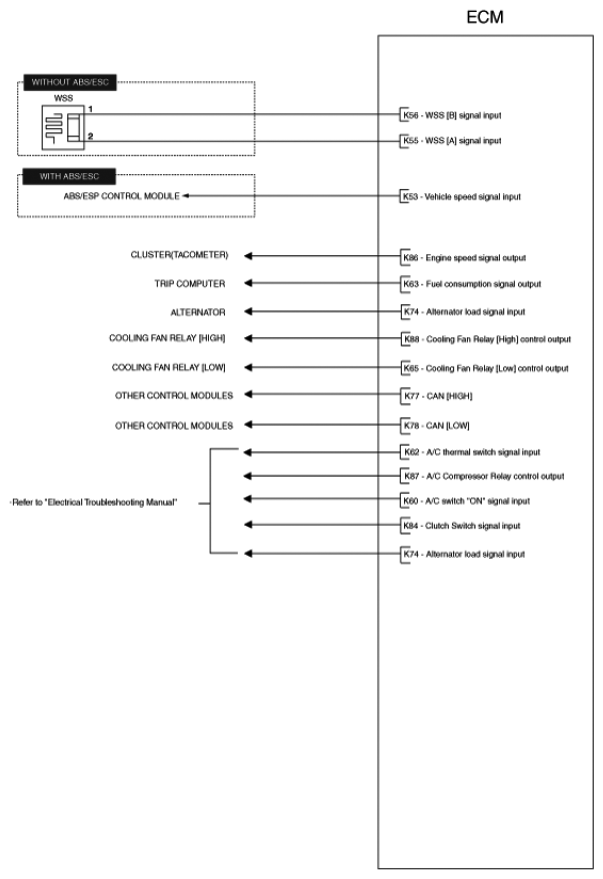

Fig 4: ECM Circuit Diagram (4 Of 4)
G06863143Courtesy of HYUNDAI MOTOR CO.
