Engine Control Module (ECM)

  1. Harness Connector

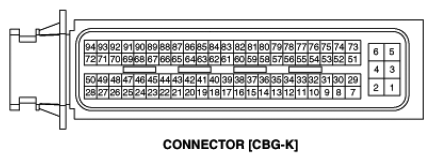

    Fig 1: Identifying Engine Control Module Connector Terminals
    G06863139Courtesy of HYUNDAI MOTOR CO.
  2. Terminal Function

    Connector [CBG-K]

    CONNECTOR PIN REFERENCE CHART

    Pin No. Description Connected to
    1 Power Ground Chassis Ground
    2 Battery voltage supply after ignition switch Ignition Switch
    3 Power Ground Chassis Ground
    4 Battery voltage supply after main relay Main Relay
    5 ECM Ground Chassis Ground
    6 Battery Power Battery
    7 Ignition Coil (Cylinder #1,4) control output Ignition Coil (Cylinder #1,4)
    8 Shield Ignition Coil
    9 Sensor ground Mass Air Flow Sensor (MAFS)
    10 Mass Air Flow Sensor signal input Mass Air Flow Sensor (MAFS)
    11 -
    12 Ground Immobilizer Control Module
    13 A/C Pressure Transducer signal input A/C Pressure Transducer (APT)
    14 Sensor ground Engine Coolant Temperature Sensor (ECTS)
    15 Engine Coolant Temperature Sensor signal input Engine Coolant Temperature Sensor (ECTS)
    16 -
    17 -
    18 Intake Air Temperature Sensor signal input Intake Air Temperature Sensor (IATS)
    19 -
    20 -
    21 Sensor ground Knock Sensor (KS)
    22 Knock Sensor signal input Knock Sensor (KS)
    23 Sensor power (+5V) Throttle Position Sensor (TPS)
    24 -
    25 Injector (Cylinder #1) control output Injector (Cylinder #1)
    26 Injector (Cylinder #3) control output Injector (Cylinder #3)
    27 Injector (Cylinder #4) control output Injector (Cylinder #4)
    28 Injector (Cylinder #2) control output Injector (Cylinder #2)
    29 Ignition Coil (Cylinder #2,3) control output Ignition Coil (Cylinder #2,3)
    30 -
    31 -
    32 -
    33 Fuel Tank Pressure Sensor signal input Fuel Tank Pressure Sensor (FTPS)
    34 Sensor ground Fuel Tank Pressure Sensor (FTPS)
    35 -
    36 -
    37 Sensor ground CVVT Oil Temperature Sensor (OTS)
    38 Heated Oxygen Sensor (B1/S2) signal input Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
    39 Sensor ground Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
    40 CVVT Oil Temperature Sensor signal input CVVT Oil Temperature Sensor (OTS)
    41 Throttle Position Sensor signal input Throttle Position Sensor (TPS)
    42 Sensor ground Throttle Position Sensor (TPS)
    43 VS+ (NERNST Cell Voltage) Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
    44 VS-/IP- (Common Ground for VS, IP) Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
    45 Rc/Rp (Pump Cell Voltage) Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
    46 Rc (Compensative Resistance) Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
    47 Sensor power (+5V) A/C Pressure Transducer (APT)
    48 Sensor power (+5V) Fuel Tank Pressure Sensor (FTPS)
    49 -
    50 -
    51 -
    52 -
    53 Vehicle speed signal input ABS/ESP Control Module [With ABS/ESC]
    54 -
    55 Wheel Speed Sensor [A] signal input Wheel Speed Sensor (WSS)[Without ABS/ESC]
    56 Wheel Speed Sensor [B] signal input Wheel Speed Sensor (WSS)[Without ABS/ESC]
    57 Sensor ground A/C Pressure Transducer (APT)
    58 -
    59 -
    60 A/C switch "ON" signal input A/C Switch
    61 -
    62 A/C thermal switch signal input A/C Thermal Switch
    63 Fuel consumption signal output Trip Computer
    64 Main Relay control output Main Relay
    65 Cooling Fan Relay [Low] control output Cooling Fan Relay [Low]
    66 CVVT Oil Control Valve control output CVVT Oil Control Valve (OCV)
    67 Purge Control Solenoid Valve control output Purge Control Solenoid Valve (PCSV)
    68 -
    69 Immobilizer lamp control output Immobilizer Lamp
    70 Fuel Pump Relay control output Fuel Pump Relay
    71 -
    72 -
    73 Battery voltage supply after main relay Main Relay
    74 Alternator load signal input Alternator
    75 Immobilizer communication line Immobilizer Control Module
    76 -
    77 CAN [HIGH] Other control module
    78 CAN [LOW] Other control module
    79 Sensor ground Camshaft Position Sensor (CMPS)
    80 Camshaft Position Sensor signal input Camshaft Position Sensor (CMPS)
    81 Sensor ground Crankshaft Position Sensor (CKPS)
    82 Crankshaft Position Sensor signal input Crankshaft Position Sensor (CKPS)
    83 -
    84 Clutch Switch signal input Clutch Switch
    85 -
    86 Engine speed signal output Cluster (Tachometer)
    87 A/C Compressor Relay control output A/C Compressor Relay
    88 Cooling Fan Relay [High] control output Cooling Fan Relay [High]
    89 Idle Speed Control Actuator [OPEN] control output Idle Speed Control Actuator (ISCA)
    90 Idle Speed Control Actuator [CLOSE] control output Idle Speed Control Actuator (ISCA)
    91 Canister Close Valve control output Canister Close Valve (CCV)
    92 Malfunction Indicator Lamp (MIL) control output Cluster (Malfunction Indicator Lamp)
    93 Heated Oxygen Sensor (B1/S1) Heater control output Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
    94 Heated Oxygen Sensor (B1/S2) Heater control output Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
  3. Terminal Input/output Signal

    Connector [CBG-K]

    CONNECTOR PIN REFERENCE CHART

    Pin No. Description Condition Type Level Test Result
    1 Power Ground Idle DC Max. 50mV
    2 Battery voltage supply after ignition switch IG OFF DC Max. 1.0V 1.18mV
    IG ON Battery Voltage 12.7V
    3 Power Ground Idle DC Max. 50mV -4.37mV
    4 Battery voltage supply after main relay IG OFF DC Max. 1.0V -5.1mV
    IG ON Battery Voltage 12.3V
    5 ECM Ground Idle DC Max. 50mV 10.1mV
    6 Battery Power Always DC Battery Voltage 12.2V
    7 Ignition Coil (Cylinder #1,4) control output Idle Pulse 1st Voltage: 300 ~ 400V 372V
    ON Voltage: Max. 2.0V 1.6V
    8 Shield Idle DC Max. 50mV 18.3mV
    9 Sensor ground Idle DC Max. 50mV 18.7mV
    10 Mass Air Flow Sensor signal input Idle DC 0 ~ 2.0V 1.1V
    3,000 rpm 1.0 ~ 4.5V 1.85V
    11 -
    12 Ground Idle DC Max. 50mV
    13 A/C Pressure Transducer signal input Idle DC 0.4 ~ 4.6V A/C OFF:1.18V
    A/C ON:1.48V
    14 Sensor ground Idle DC Max. 50mV 13.0mV
    15 Engine Coolant Temperature Sensor signal input Idle DC 0.5 ~ 4.5V 1.84V
    16 Sensor ground Idle DC Max. 50mV
    17 -
    18 -
    19 -
    20 -
    21 Sensor ground Idle DC Max. 50mV
    22 Knock Sensor signal input Knocking Variable Frequency
    Normal
    23 Sensor power (+5V) IG OFF DC Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.03V
    24 -
    25 Injector (Cylinder #1) control output Idle DC Hi: Battery Voltage 14.4V
    Lo: Max. 1.0V 280mV
    Vpeak: Max. 80V 48.8V
    26 Injector (Cylinder #3) control output Idle DC Hi: Battery Voltage 14.2V
    Lo: Max. 1.0V 240mV
    Vpeak: Max. 80V 49.0V
    27 Injector (Cylinder #4) control output Idle DC Hi: Battery Voltage 14.4V
    Lo: Max. 1.0V 280mV
    Vpeak: Max. 80V 48.8V
    28 Injector (Cylinder #2) control output Idle DC Hi: Battery Voltage 14.2V
    Lo: Max. 1.0V 240mV
    Vpeak: Max. 80V 49.0V
    29 Ignition Coil (Cylinder #2,3) control output Idle Pulse 1st Voltage: 300 ~ 400V 376V
    ON Voltage: Max. 2.0V 1.36V
    30 -
    31 -
    32 -
    33 Fuel Tank Pressure Sensor signal input Idle DC 0.4 ~ 4.6V 2.58V
    34 Sensor ground Idle DC Max. 50mV 16.1mV
    35 -
    36 -
    37 Sensor ground Idle DC Max. 50mV 17.3mV
    38 Heated Oxygen Sensor (B1/S2) signal input Racing Analog Rich: 0.6 ~ 1.0V 640mV
    Lean: Max. 0.4V 22mV
    39 Sensor ground Idle DC Max. 50mV 3.14mV
    40 CVVT Oil Temperature Sensor signal input Idle Analog 0.5 ~ 4.5V 950mV
    41 Throttle Position Sensor signal input C.T Analog 0.25 ~ 0.9V 307mV
    W.O.T Min. 4.0V 4.28V
    42 Sensor ground Idle DC Max. 50mV 13.6mV
    43 VS+ (NERNST Cell Voltage) Engine Run Analog Normal: 450±50mV 440mV
    Rich: Max. Normal+150mV 508mV
    Lean: Min. Normal-150mV 356mV
    44 VS-/IP- (Common Ground for VS, IP) Engine Run Analog Reference for VS, IP Hi: 2.7V
    Lo: 2.0V
    45 Rc/Rp (Pump Cell Voltage) Engine Run Analog Normal: 0±500mV 440mV
    Rich: Min. Normal-1.5mV -860mV
    Lean: Max. Normal+1.5mV 870mV
    46 Rc (Compensative Resistance) Idle Analog |Rc-Rc/Rp|<±0.1V|LH -107mV
    47 Sensor power (+5V) IG OFF DC Max. 0.5V 2.61mV
    IG ON 4.9 ~ 5.1V 5.04V
    48 Sensor power (+5V) IG OFF DC Max. 0.5V 3.16mV
    IG ON 4.9 ~ 5.1V 5.06V
    49 -
    50 -
    51 -
    52 -
    53 Vehicle speed signal input Vehicle Run Pulse Hi: Min. 4.5V 13.0V
    Lo: Max. 0.5V -200mV
    54 -
    55 Wheel Speed Sensor [A] signal input Vehicle Run (30km/h) SINE Wave 15Hz: Min. 0.13Vpp
    1,000Hz: Min 0.2Vpp
    Overall: Max. 250Vpp
    56 Wheel Speed Sensor [B] signal input Vehicle Run (30km/h) SINE Wave 15Hz: Min. 0.13Vpp
    1,000Hz: Min 0.2Vpp
    Overall: Max. 250Vpp
    57 Sensor ground Idle DC Max. 50mV 10mV
    58 -
    59 -
    60 A/C switch "ON" signal input A/C S/W OFF DC Max. 1.0V 0mV
    A/C S/W ON Battery Voltage 12.8V
    61 -
    62 A/C thermal switch signal input A/C S/W OFF DC Max. 1.0V 0mV
    A/C S/W ON Battery Voltage 12.8V
    63 Fuel consumption signal output Idle Pulse Hi: Battery Voltage 13.8V
    Lo: Max. 0.5V 0.1V
    64 Main Relay control output Relay OFF DC Battery Voltage 12.9V
    Relay ON Max. 1.0V 0.88V
    65 Cooling Fan Relay [Low] control output Relay OFF DC Battery Voltage 12.9V
    Relay ON Max. 1.0V 30mV
    66 CVVT Oil Control Valve control output Idle Pulse Battery Voltage 14.8V
    Max. 1.0V 100mV
    67 Purge Control Solenoid Valve control output Active Inactive Pulse Hi: Battery Voltage 14.2V
    Lo: Max. 1.0V 100mV
    68 -
    69 Immobilizer lamp control output Lamp OFF DC Battery Voltage
    Lamp ON Max. 2.0V
    70 Fuel Pump Relay control output Relay OFF DC Battery Voltage 13V
    Relay ON Max. 1.0V 100mV
    71 -
    72 -
    73 Battery voltage supply after main relay IG OFF DC Max. 1.0V -5.1mV
    IG ON Battery Voltage 12.3V
    74 Alternator load signal input Idle Pulse Hi: Battery Voltage 14V
    Lo: Max. 1.5V 10mV
    75 Immobilizer communication line When communicating after IG ON Pulse Hi: Min. 8.5V
    Lo: Max. 3.5V
    76 -
    77 CAN [HIGH] RECESSIVE Pulse 2.0 ~ 3.0V 2.55V
    DOMINANT 2.75 ~ 4.5V 3.57V
    78 CAN [LOW] RECESSIVE Pulse 2.0 ~ 3.0V 2.55V
    DOMINANT 0.5 ~ 2.25V 1.44V
    79 Sensor ground Idle DC Max. 50mV 10mV
    80 Camshaft Position Sensor signal input Idle Pulse Hi: Vcc 5.0V
    Lo: Max. 0.5V 0.2V
    81 Sensor ground Idle DC Max. 50mV 10mV
    82 Crankshaft Position Sensor signal input Idle Pulse Hi: Vcc 5.0V
    Lo: Max. 0.5V 40mV
    83 -
    84 Clutch Switch signal input Release DC Max. 0.5V
    Push Battery Voltage
    85 -
    86 Engine speed signal output Idle Pulse Hi: Battery Voltage 14.0V
    Lo: Max. 0.5V 100mV
    Freq.: 20 ~ 26Hz 21.8Hz
    87 A/C Compressor Relay control output Relay OFF DC Battery Voltage 14.1V
    Relay ON Max. 1.0V 0.1V
    88 Cooling Fan Relay [High] control output Relay OFF DC Battery Voltage 14.1V
    Relay ON Max. 1.0V 320mV
    89 Idle Speed Control Actuator [OPEN] control output Idle Pulse Hi: Battery Voltage 14.6V
    Lo: Max. 1.0V 192mV
    90 Idle Speed Control Actuator [CLOSE] control output Idle Pulse Hi: Battery Voltage 14.9V
    Lo: Max. 1.0V 248mV
    91 Canister Close Valve control output Active Inactive Pulse Hi: Battery Voltage 14.0V
    Lo: Max. 1.0V 170mV
    92 Malfunction Indicator Lamp (MIL) control output Lamp OFF DC Battery Voltage 13V
    Lamp ON Max. 1.0V 50mV
    93 Heated Oxygen Sensor (B1/S1) Heater control output Engine Run Pulse Hi: Battery Voltage 14V
    Lo: Max. 1.0V 0.3V
    94 Heated Oxygen Sensor (B1/S2) Heater control output Engine Run Pulse Hi: Battery Voltage 14V
    Lo: Max. 1.0V 0.3V
