Repair procedures (A4CF2): Installation

Install the new O-ring to the input shaft speed sensor.
Install the input shaft speed sensor (A).
Tightening torque:

10~12 Nm (1.0~1.2 kgf.m, 7~8 lb-ft)

CAUTION: While installing the input shaft speed sensor, do not allow dust or other foreign particles to enter the transaxle.

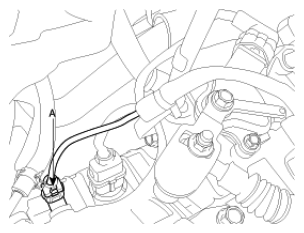

Fig 1: Installing Input Shaft Speed Sensor
Courtesy of HYUNDAI MOTOR CO.
Check the connector for dust, dirt, or oil, and then connect the input shaft speed sensor connector (A) securely.

Fig 2: Connecting Input Shaft Speed Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
