Repair procedures (A4CF2): Installation

Install the new O-ring to the output shaft speed sensor.
Remove the output shaft speed sensor (A).
Tightening torque:

10~12 Nm (1.0~1.2 kgf.m, 7~8 lb-ft)

CAUTION: While installing the output shaft speed sensor, do not allow dust or other foreign particles to enter the transaxle.

Fig 1: Installing Output Shaft Speed Sensor
Courtesy of HYUNDAI MOTOR CO.
Check the connector for dust, dirt, or oil, then connect the output shaft speed sensor connector (A) securely.

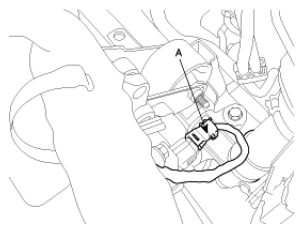

Fig 2: Connecting Output Shaft Speed Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
