Immobilizer Control Unit: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). (Refer to "CRASH PAD ").
    Fig 1: Identifying Crash Pad Lower Panel
    G06102271Courtesy of HYUNDAI MOTOR CO.
  3. Remove the reinforcing panel (A).
    Fig 2: Identifying Reinforcing Panel
    G06102272Courtesy of HYUNDAI MOTOR CO.

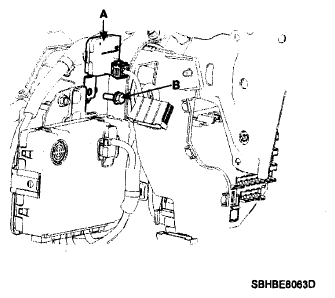

  4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a nut (B).
    Fig 3: Identifying Smartra Unit 5P Connector And Nut
    G06102273Courtesy of HYUNDAI MOTOR CO.
