Monitor Scantool Data

Connect scan tool to data link connector (DLC), Ignition "ON"
Erase DTC and Engine "ON"
Monitor the "Sports mode, Sports mode up-s/w, Sports mode down-s/w" parameter on the scan tool.
Select "D" range and Drive vehicle, confirm output data.

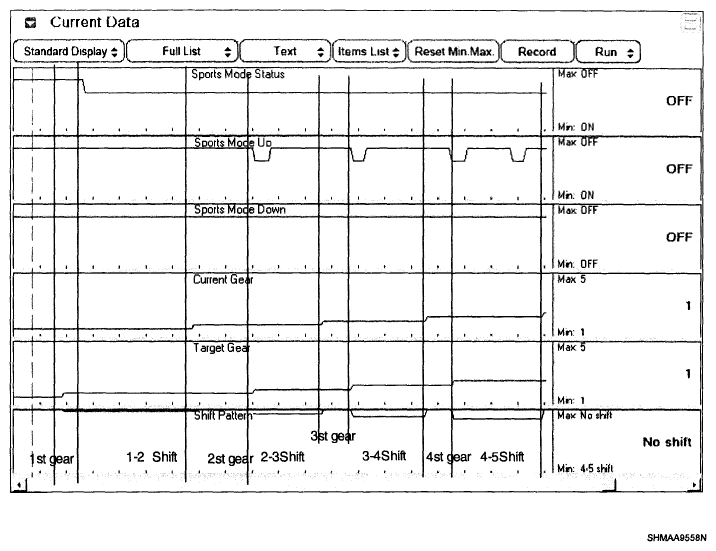

Fig 1: Scan Tool Display - Sports Mode 1
Courtesy of HYUNDAI MOTOR CO.

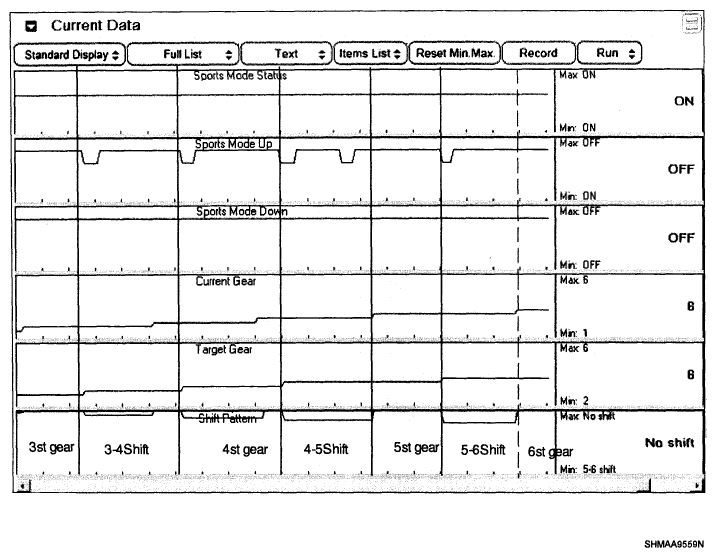

Fig 2: Scan Tool Display - Sports Mode 2
Courtesy of HYUNDAI MOTOR CO.
Is "Sports mode" operation normally?
YES
- Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
- Go to Wiring circuit Inspection procedure
