Wave Form

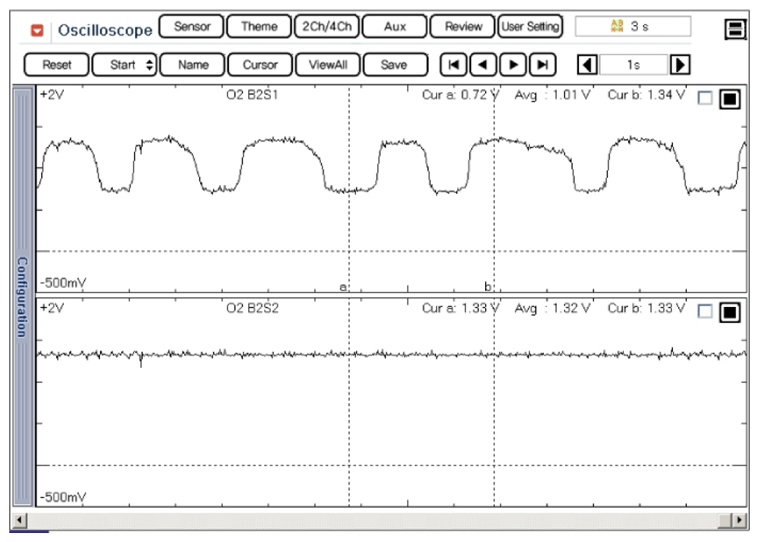

Fig 1: Front HO2S (Sensor 1) & Rear HO2S (Sensor 2) - Waveform Graph (Normal Waveform)
G06511484Courtesy of HYUNDAI MOTOR CO.

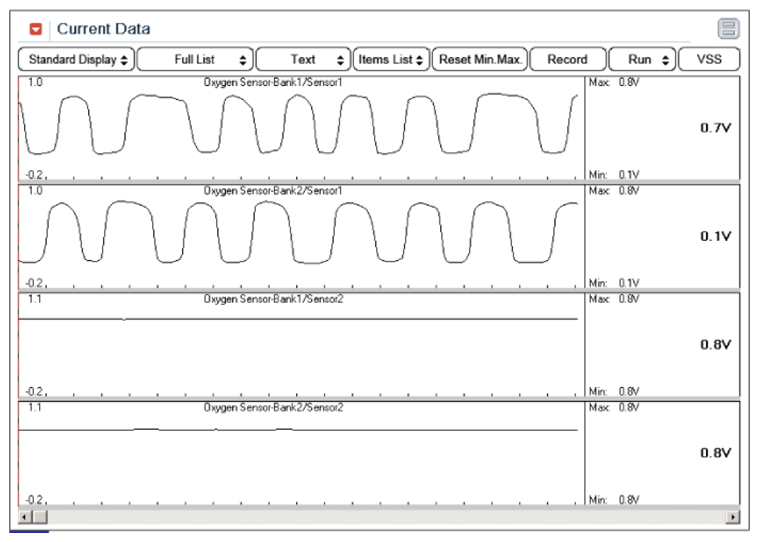

Fig 2: Sensor 1 & 2 - Waveform Graph (Normal Graph At Idle)
G06511485Courtesy of HYUNDAI MOTOR CO.
