Manifold Pressure/Vacuum Sensor: Service and Repair

Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

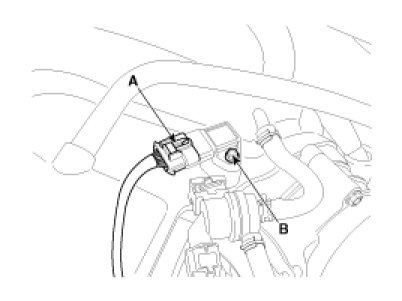

2. Disconnect the manifold absolute pressure sensor connector (A).
3. Remove the installation bolts (B), and then vertically remove the sensor from the surge tank.






Installation

CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.

CAUTION:
- Insert the sensor in the installation hole and be careful not to damage when installation.

1. Installation is reverse of removal.

Manifold absolute pressure sensor Installation bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
