Front Door Window Regulator: Service and Repair

Replacement

Door Module Assembly Replacement
1. Remove the following parts :
A. Front door trim
B. Door screen.
C. Window glass
D. Outside handle
2. Loosen the outside handle base mounting screw (A).

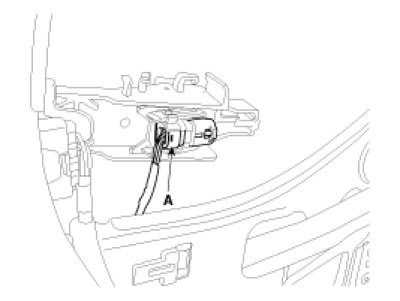

3. Disconnect the outside handle connector (A).

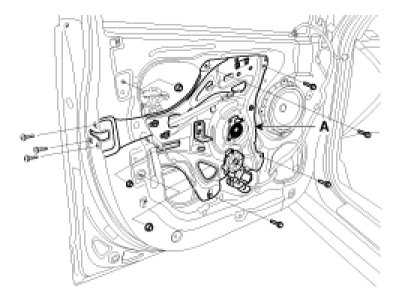

4. Loosen the module mounting bolts.
5. Loosen the latch mounting nuts, remove the module (A).

Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

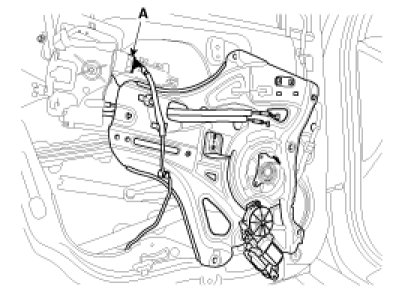

6. Disconnect the connector (A) and clip.




7. Installation is the reverse of removal.

NOTE:
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace ant damaged clips.
