Charging System
CHARGING SYSTEM SPECIFICATIONS
| Items | Specification | |
|---|---|---|
| Alternator | Type | I.C. regulator built-in |
| Rate voltage | 13.5 V, 90A | |
| Speed in use | 1, 000 ~ 18, 000 RPM | |
| Voltage regulator | Electronic built-in type | |
| Regulator setting voltage | 14.4 ± 0.1 V | |
| Temperature compensation | -3.5 ± 2 mV/°C | |

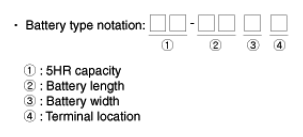

| Battery | Type | 44-21GL |
| Cold cranking amperage [at -18 °C (-0.4 °F)] | 500 A | |
| Reserve capacity | 85 min | |
| Specific gravity [at 20 °C (68 °F)] | 1.280 ± 0.01 | |
CAUTION:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2 V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5 V at 26.7 °C (80.1 °F).
