Component Inspection

Visual Inspection
1. IG "OFF"
2. Disconnect HO2S (B1/S2) connector.
3. Check that HO2S (B1S2) is contaminated or damaged by foreign materials.
4. Has a problem been found?
  YES
  1. Go to " 2 Check ECM" as follows.
  NO
  1. Substitute with a known - good HO2S (B1/S2) and check for proper operation.
    If the problem is corrected, replace HO2S (B1/S2) and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check ECM
1. IG "OFF" and disconnect B1S2 connector.
2. Connect scan tool and Key "ON".
3. Select simulation function on scan tool.
4. Simulate voltage at terminal 2 of HO2S (B1/S2) signal connector.

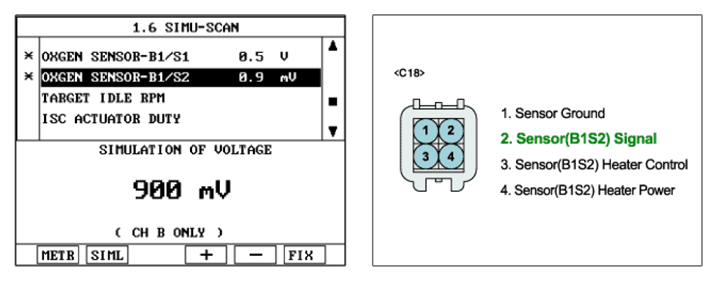

  Fig 1: Screen Display - Oxygen Sensor - B1/S2 Voltage
  Courtesy of HYUNDAI MOTOR CO.
5. Does the signal value of HO2S (B1/S2) change according to simulation voltage?
  YES
  1. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  1. Substitute with a known - good ECM and check for proper operation.
    If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
