Monitor Scan Tool Data

  1. Connect scan tool to Data Link Connector (DLC).
  2. Key "ON".
  3. Monitor DTC (Diagnostics Trouble Code) on the scan tool.

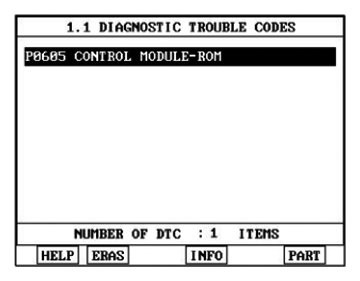

    Fig 1: Monitoring DTC (Diagnostics Trouble Code) On Scan Tool
    G06881916Courtesy of HYUNDAI MOTOR CO.
  4. Are the parameters displayed correctly?

    YES

    1. Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    1. Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
