Components and Components Location: Components

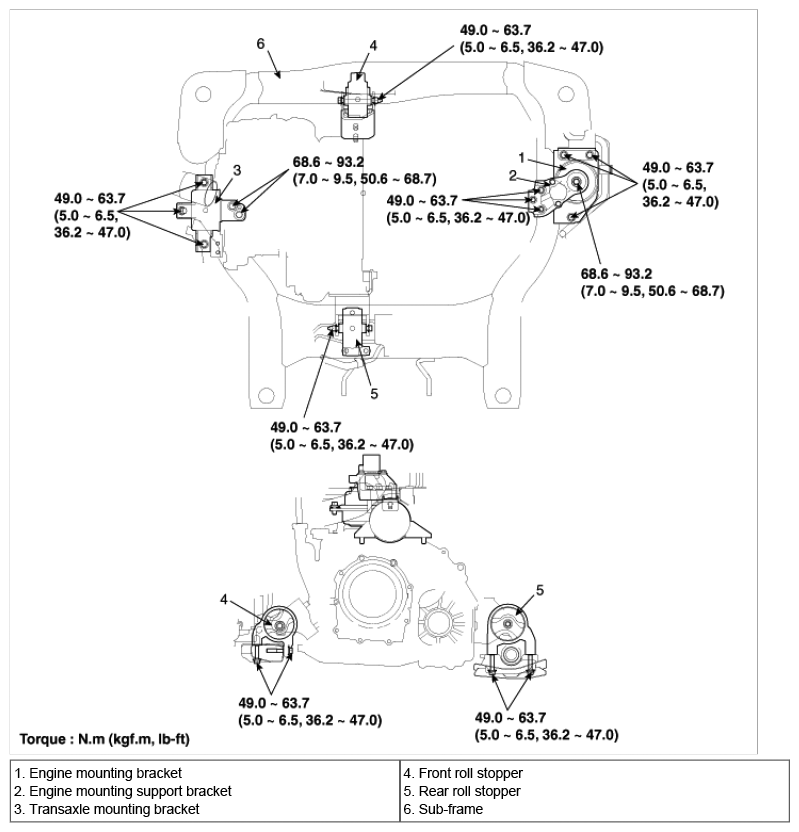

Fig 1: Identifying Engine And Transaxle Assembly Mounting Components And Bolts Tightening Torque
G06878993Courtesy of HYUNDAI MOTOR CO.
