Components (2)

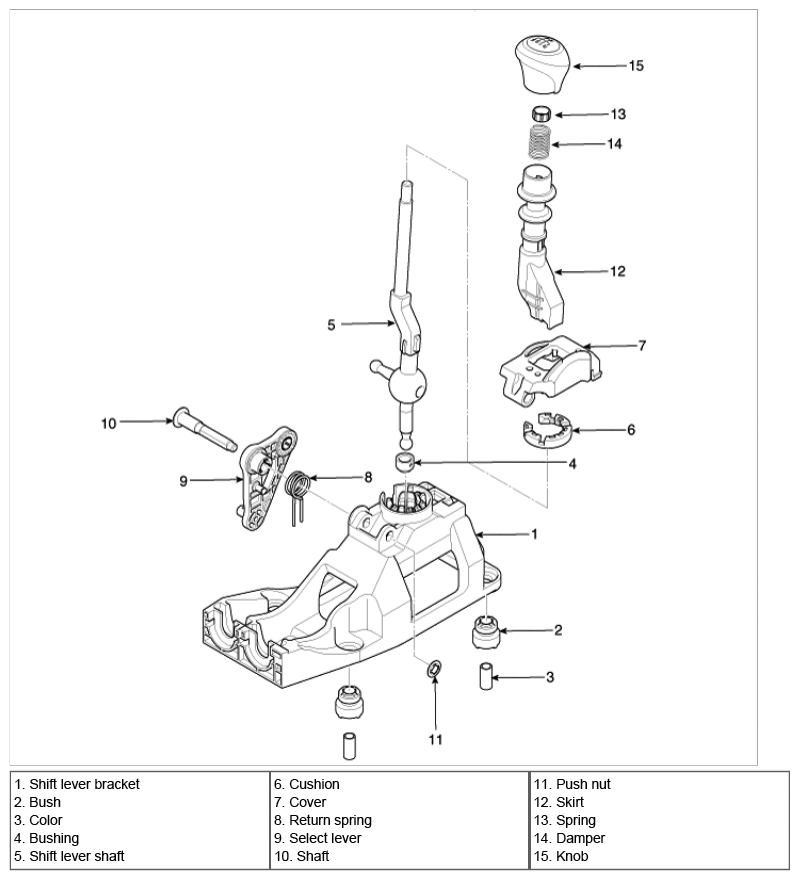

Fig 1: Identifying Manual Transaxle Shift Control System Components (2 Of 2)
G06879588Courtesy of HYUNDAI MOTOR CO.
