Power Window Relay: Locations

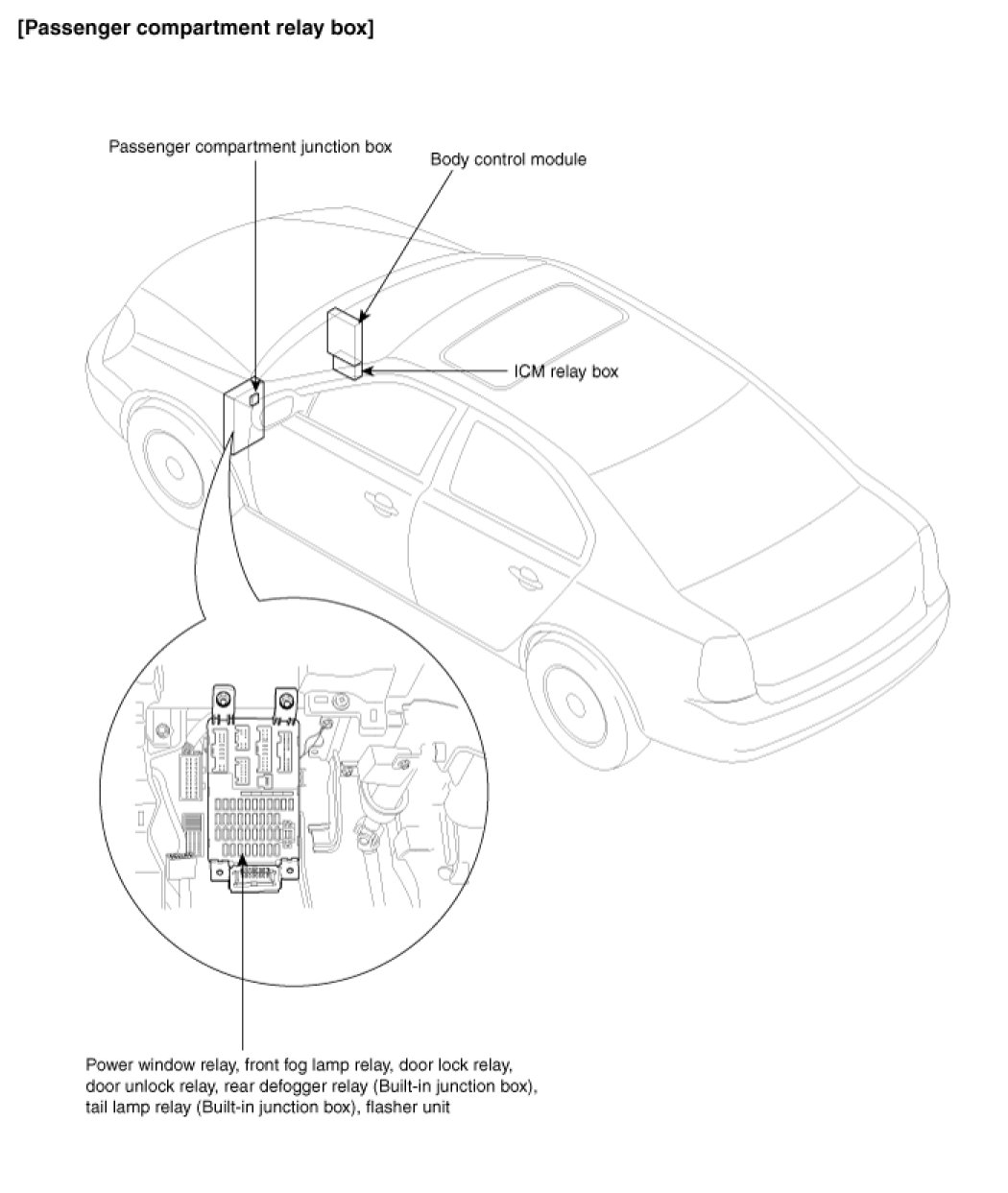

Component Location






I/P Junction Box

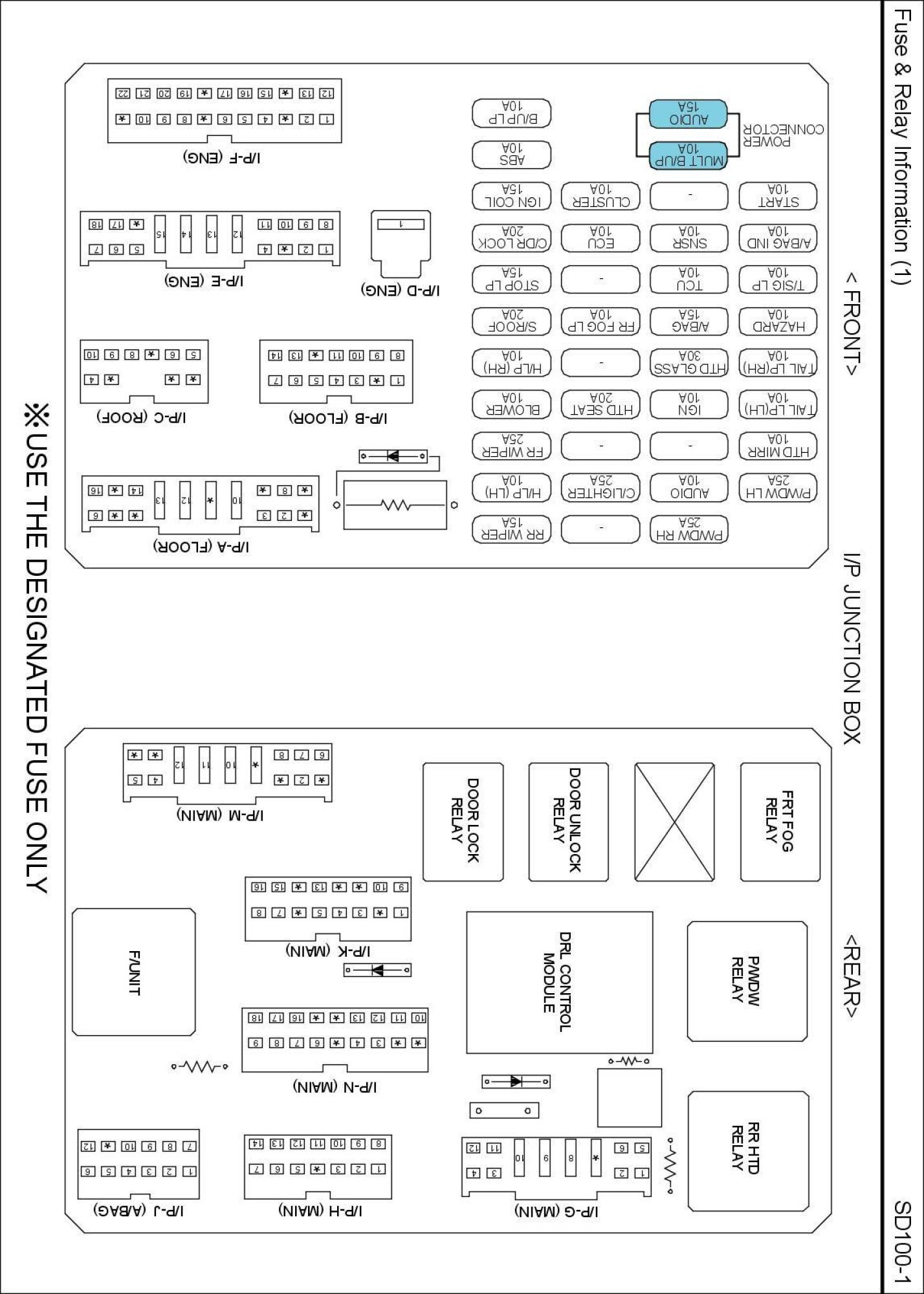

I/P Junction Box View:

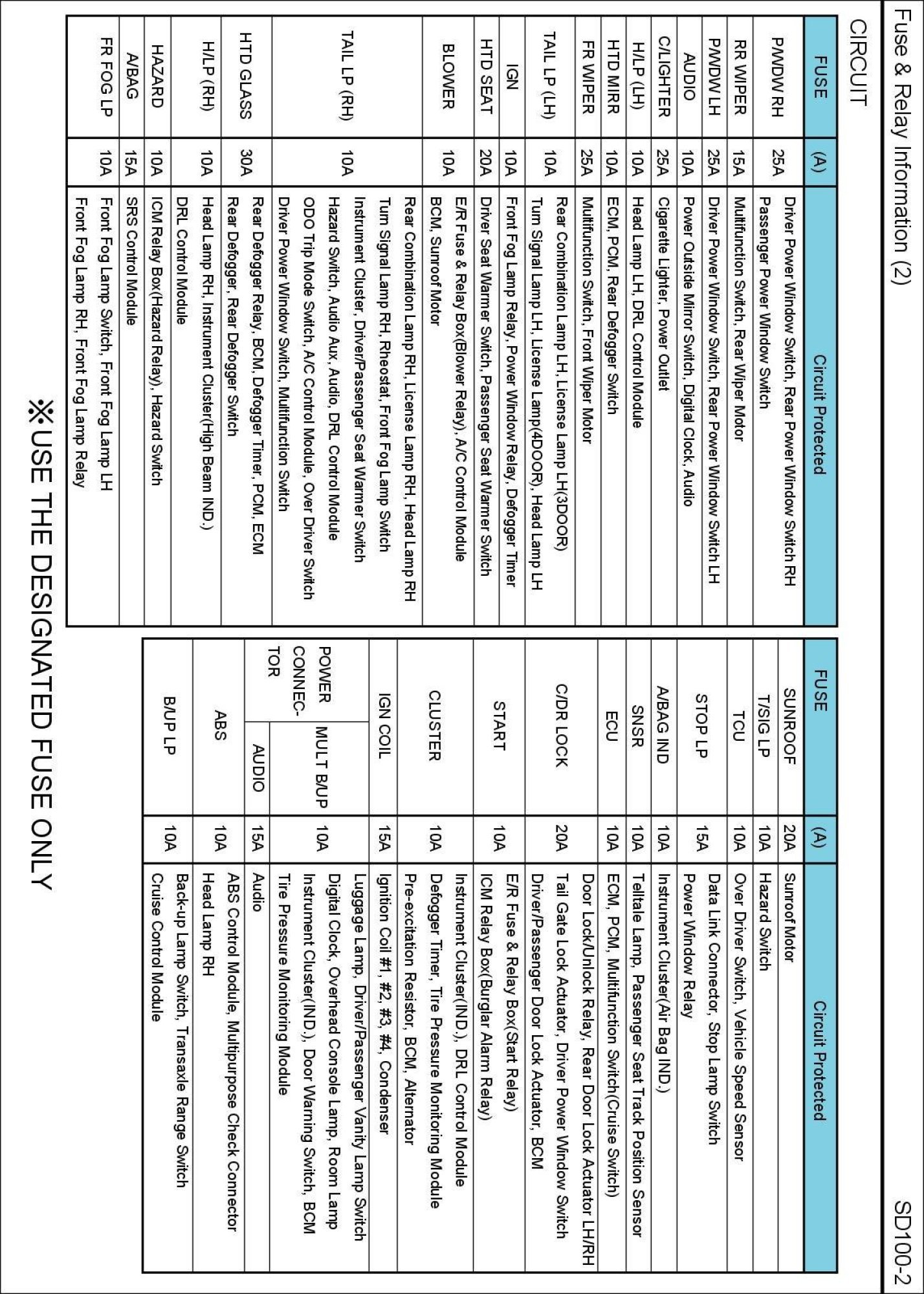

I/P Junction Box Circuit Details:

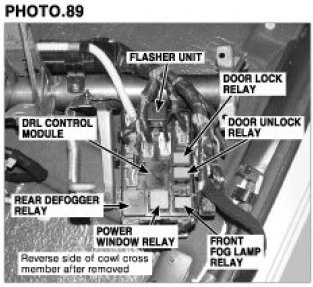

Photo 89
