Wave Form

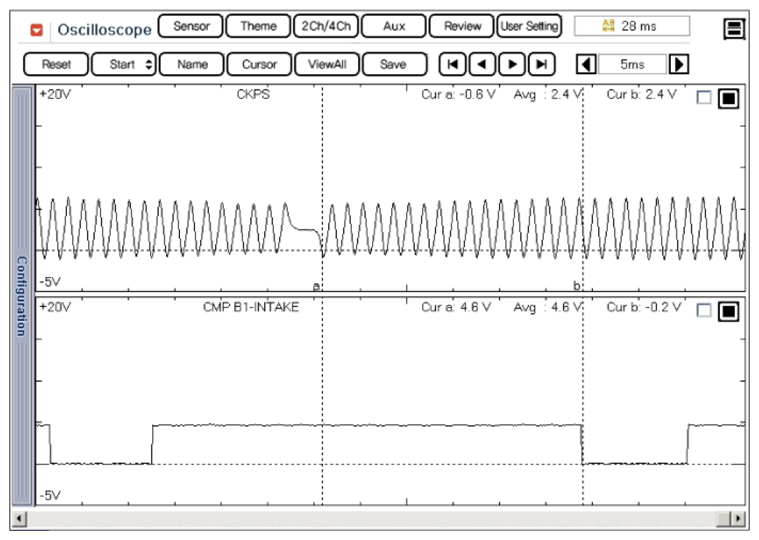

Fig 1: Normal Waveform Of CKPS & CMPS
G07249689Courtesy of HYUNDAI MOTOR CO.

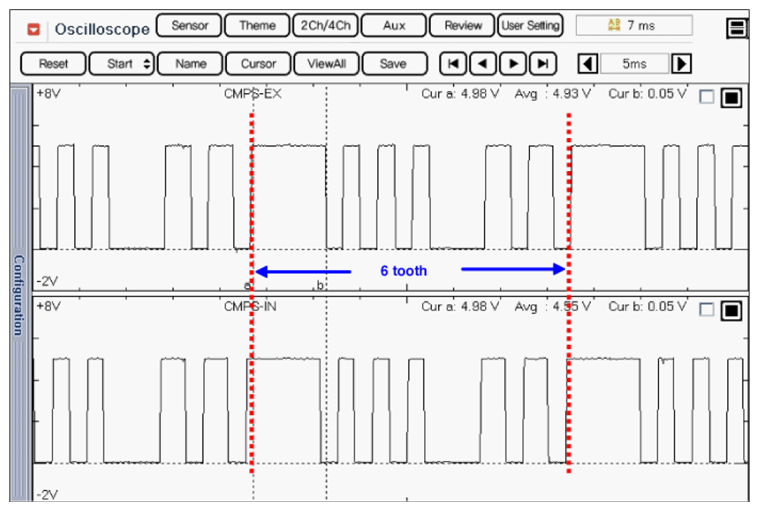

Fig 2: Normal Waveform Of CMPS
G07249690Courtesy of HYUNDAI MOTOR CO.
