Wave Form

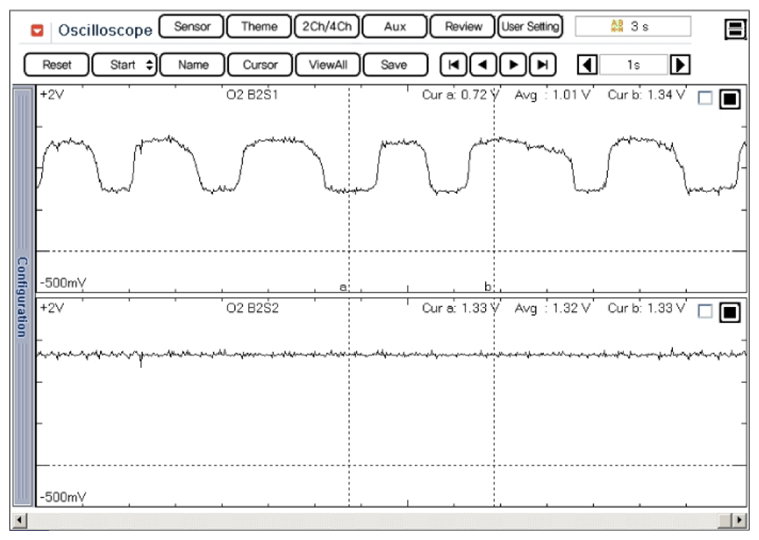

Fig 1: Normal Waveform Of Front HO2S (Sensor 1) And Rear HO2S (Sensor 2)
G07249695Courtesy of HYUNDAI MOTOR CO.

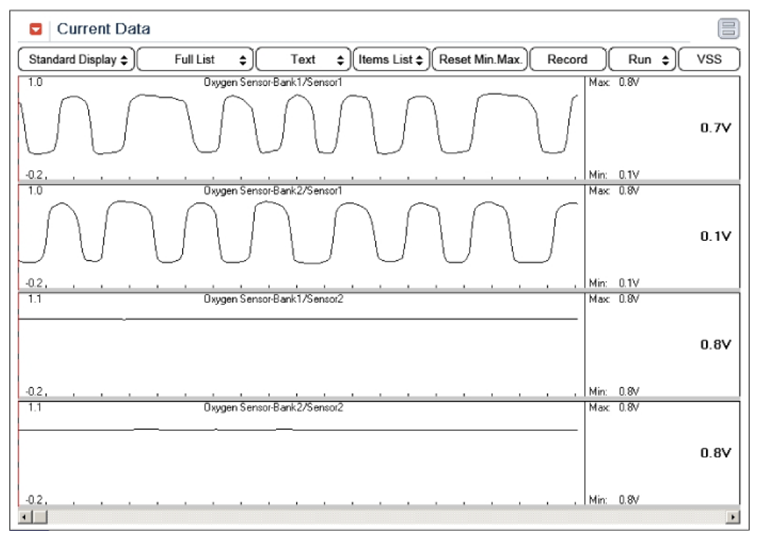

Fig 2: Normal Graph Of Sensor 1 And Sensor 2
G07249696Courtesy of HYUNDAI MOTOR CO.
