Components (2)

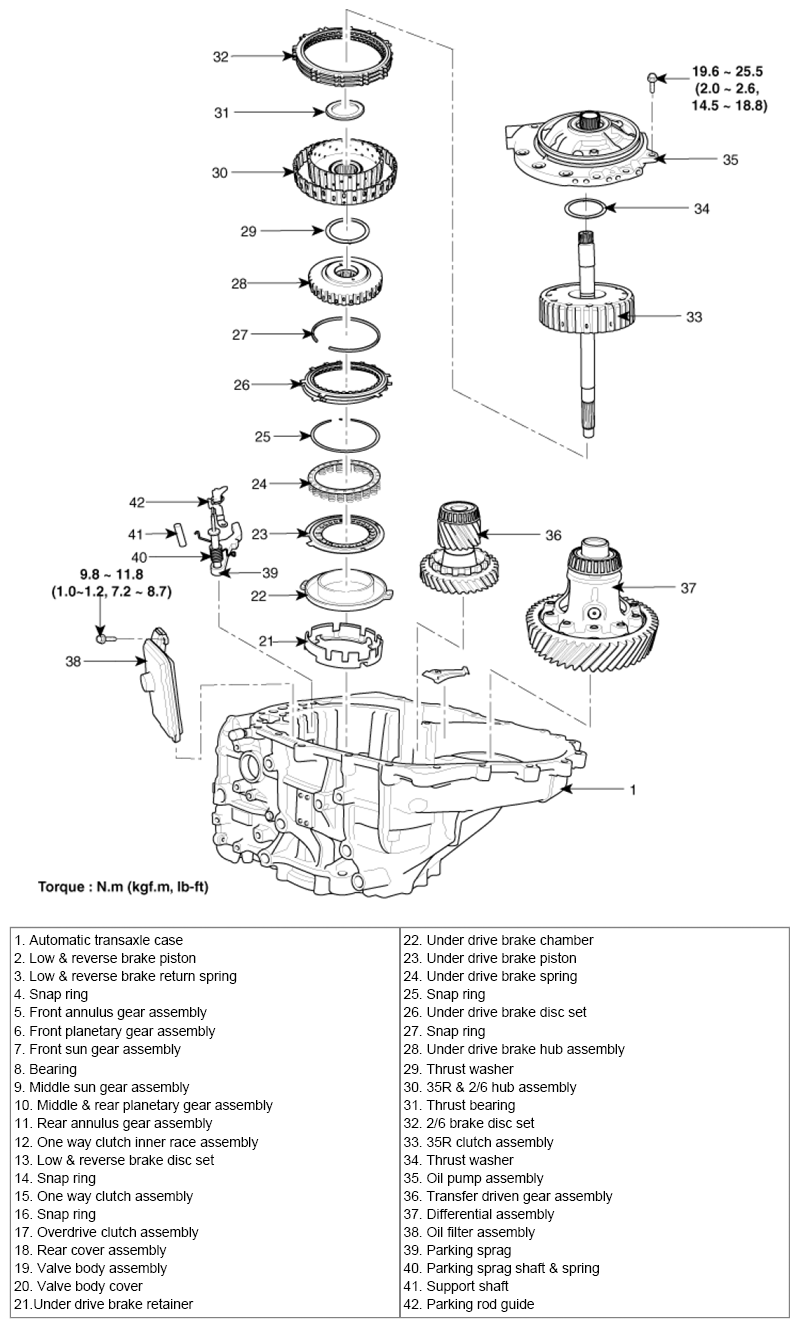

Fig 1: Exploded View Of Automatic Transaxle (2 Of 2) With Torque Specifications
G07249739Courtesy of HYUNDAI MOTOR CO.
