Repair Procedures: Removal

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the driver airbag module from the steering wheel after pressing the snap fit pin stopper.

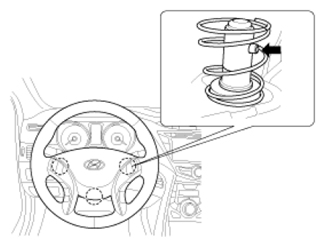

    Fig 1: Identifying Snap Fit Pin Stopper
    G07272987Courtesy of HYUNDAI MOTOR CO.
  3. Remove the wiring fixing clip (C) and disconnect the horn connector (A).

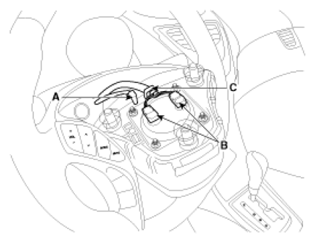

    Fig 2: Identifying Wiring Fixing Clip And Horn Connector
    G07272988Courtesy of HYUNDAI MOTOR CO.
  4. Release the connector locking pin, then disconnect the driver airbag module connector (B).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel and steering wheel column shroud. (Refer to the "STEERING COLUMN AND SHAFT ")

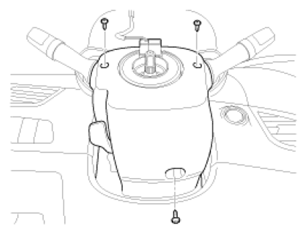

    Fig 3: Identifying Steering Wheel Column Shroud Screws
    G07272989Courtesy of HYUNDAI MOTOR CO.
  6. Disconnect the clock spring and horn connector (A), then remove the clock spring.

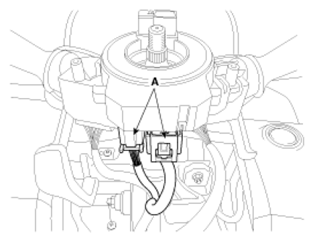

    Fig 4: Identifying Horn Connector
    G07272990Courtesy of HYUNDAI MOTOR CO.
