Timing Cover
Timing Cover

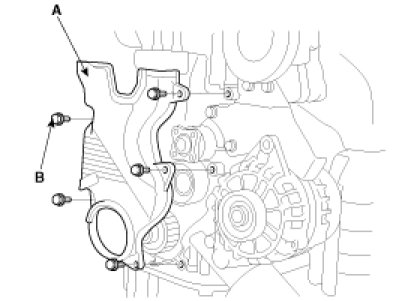

Install the timing belt lower cover (A) with 5 bolts (B).
Tightening torque :
Timing belt cover bolt 7.8 - 9.8 Nm (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
Timing Cover
Install the timing belt lower cover (A) with 5 bolts (B).
Tightening torque :
Timing belt cover bolt 7.8 - 9.8 Nm (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
