Smart Key Unit

  1. Disconnect the negative (-) battery terminal.

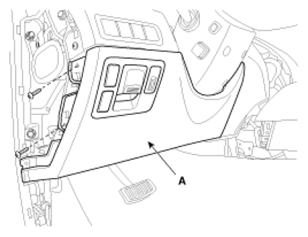

  2. Remove the crash pad lower panel (A). Avoid damaging retaining clip. (Refer to the CRASH PAD )
    Fig 1: Identifying Crash Pad Lower Panel
    G07312655Courtesy of HYUNDAI MOTOR CO.
  3. After loosening the smart key unit IPM mounting nuts and disconnect the connector, remove the smart key unit (A).
    Fig 2: Identifying Smart Key Unit
    G07312656Courtesy of HYUNDAI MOTOR CO.
