Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Identifying Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "Smart key code saving".

Fig 2: Selecting Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 3: Display Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR CO.
After inserting the teaching key, push "ENTER" key.

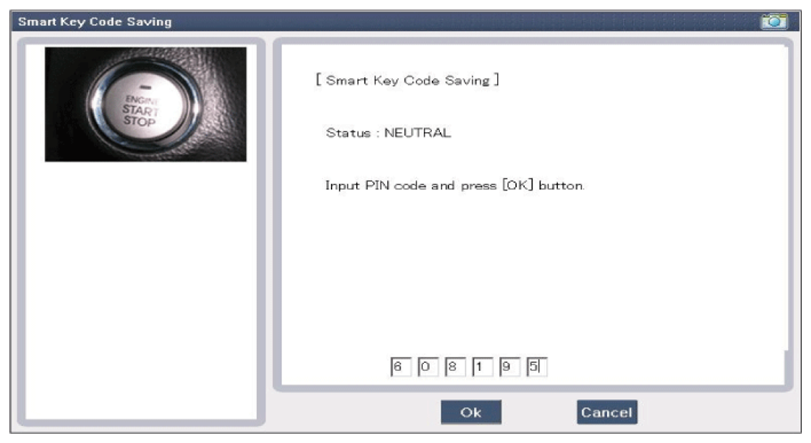

Input the "Pin code" for first key teaching.

Fig 4: Display Smart Key Code Entering Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 5: Display Smart Key Code Entering Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.

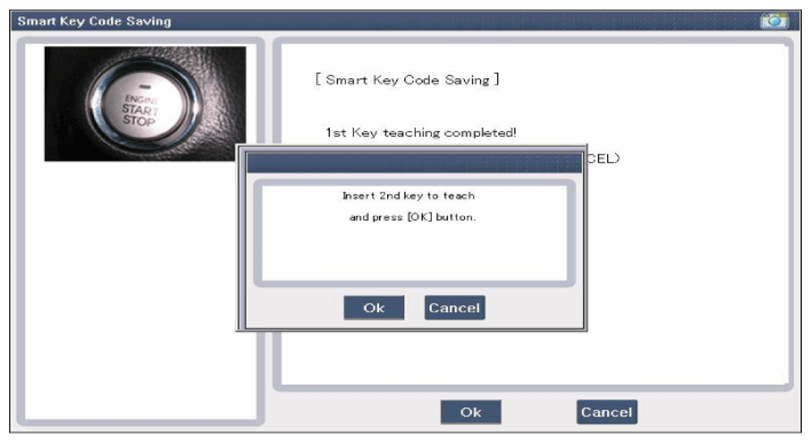

Confirm the message "First key teaching completed".

Fig 6: Display First Key Teaching Completed Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 7: Display First Key Teaching Completed Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Input the "Pin code" for second key teaching.

Fig 8: Display Pin Code Entering Screen For Second Key Teaching (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 9: Display Pin Code Entering Screen For Second Key Teaching (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.

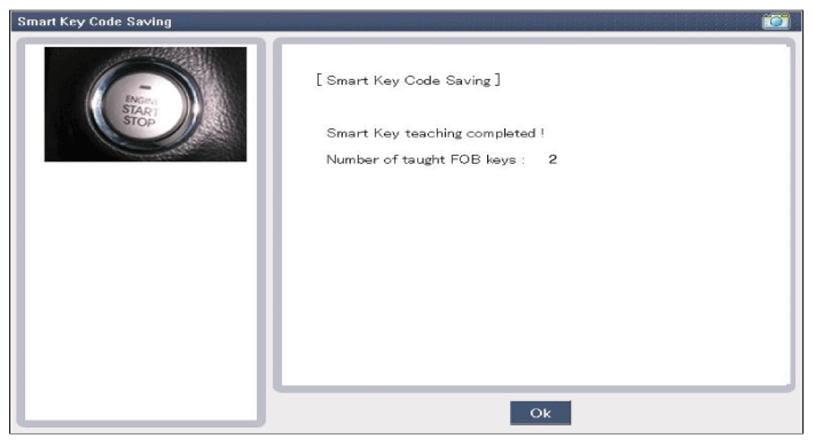

Confirm the message "Second key teaching completed".

Fig 10: Display Second Key Teaching Completed
Courtesy of HYUNDAI MOTOR CO.
