Assist Power Window Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Assist Power Window Switch

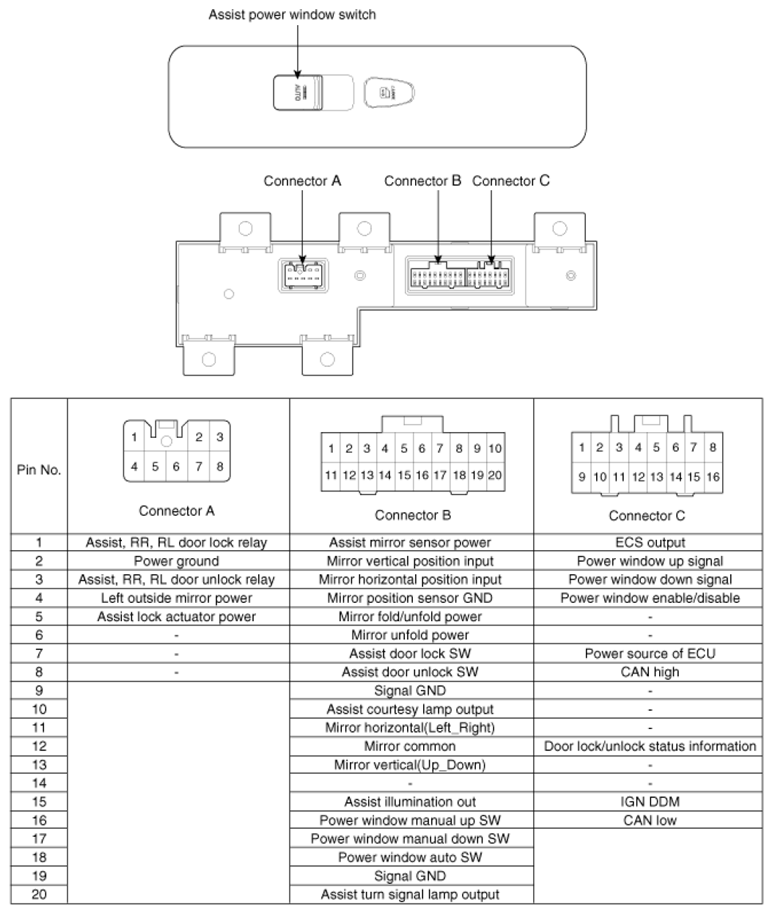

Fig 1: Identifying Assist Power Window Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
