Components and Components Location
>>
Components
>>
Power Window Main Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Power Window Main Switch

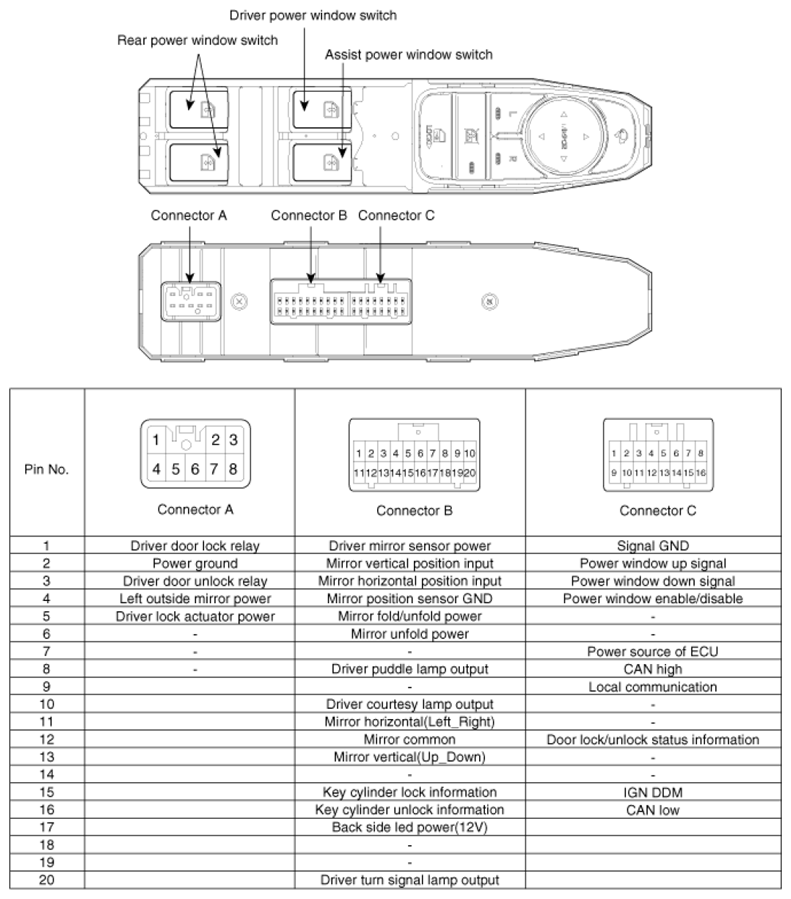

Fig 1: Identifying Power Window Main Switch Connectors
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
