Rear Power Window Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Rear Power Window Switch

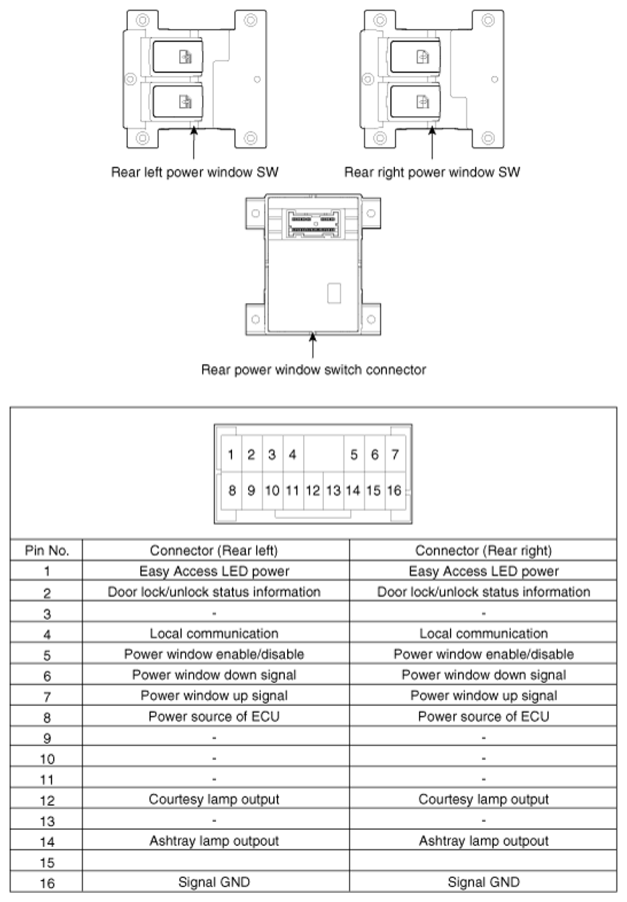

Fig 1: Identifying Rear Power Window Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
