Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable
  2. Remove the crash pad side cover.

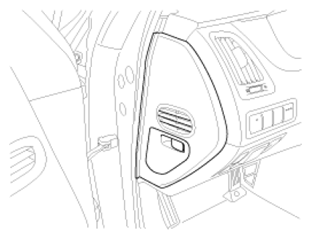

    Fig 1: Identifying Crash Pad Side Cover
    G07312247Courtesy of HYUNDAI MOTOR CO.
  3. Remove the lower panel. (Refer to the CRASH PAD )

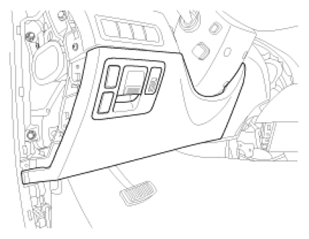

    Fig 2: Identifying Lower Panel
    G07312248Courtesy of HYUNDAI MOTOR CO.
  4. Remove the lower crash pad switch assembly by using the scraper and then disconnect the connectors.

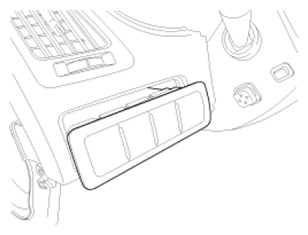

    Fig 3: Identifying Lower Crash Pad Switch Assembly
    G07312249Courtesy of HYUNDAI MOTOR CO.
  5. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 4: Terminal Continuity Chart
    G07312250Courtesy of HYUNDAI MOTOR CO.
