Components and Components Location: Components

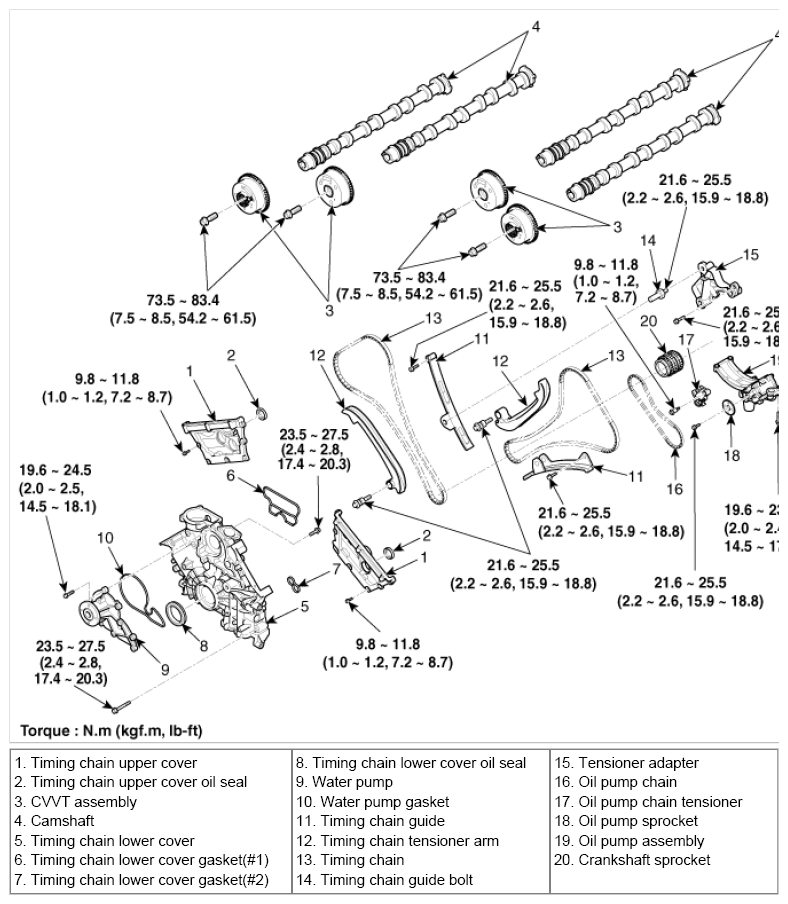

Fig 1: Exploded View Of Timing System
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
