Accelerator Position Sensor (APS): Specification

ACCELERATOR POSITION SENSOR SPECIFICATIONS CHART

Pedal Position Output Voltage(V) [Vref = 5.0V]
APS1 APS2
C.T 0.7 ~ 0.8 033 ~ 0.43
W.O.T 3.85 ~ 4.35 1.93 ~ 2.18

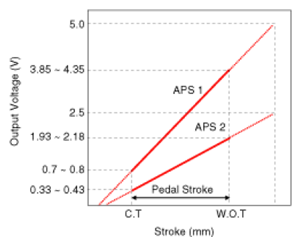

Fig 1: Accelerator Position Sensor Output Voltage And Stroke Characteristics
G07311541Courtesy of HYUNDAI MOTOR CO.
