Circuit diagram

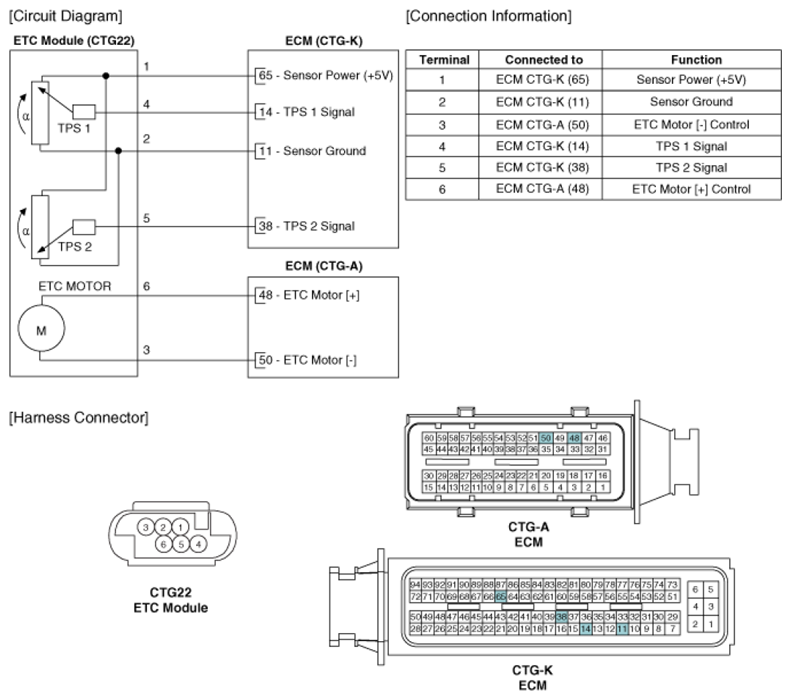

Fig 1: Electronic Throttle System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
