Equus Signature
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System Components
>>
Variable Intake Solenoid (VIS) Valve
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

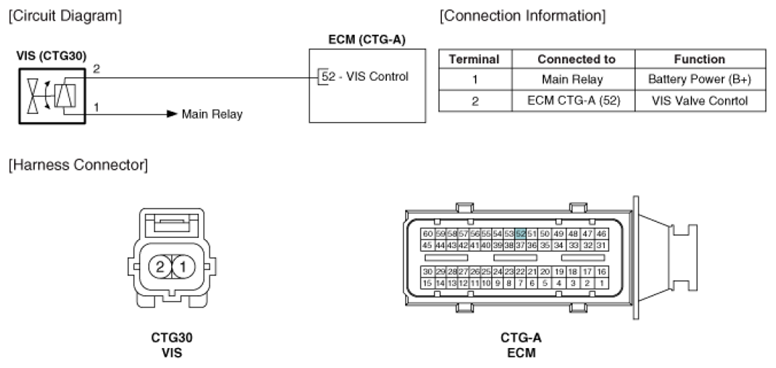

Fig 1: Variable Intake Solenoid (VIS) Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
