Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "APS" parameters on the GDS.

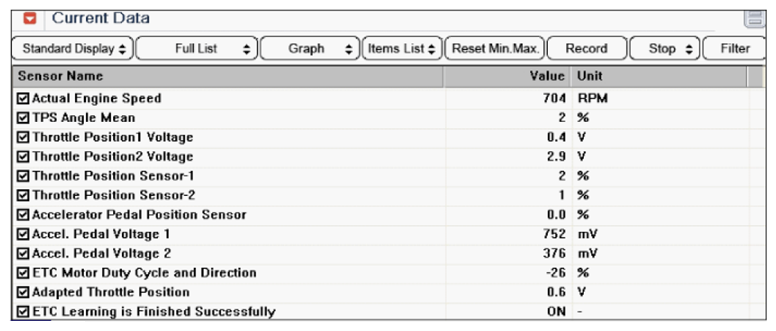

    Fig 1: Normal Data Of APS1 & APS2 At Idle
    G07306592Courtesy of HYUNDAI MOTOR CO.
  4. Is parameters displayed "Present fault"?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
