Automatic Transaxle Control Module - Reset And Relearn Adaptive Values (09-AT-002-1)

Publication date: 2010-08-01
Reference number: 09-AT-002-1
Supersedes refnos: 06-40-005, 08-AT-007, 09-AT-002

AUTOMATIC TRANSAXLE CONTROL MODULE - RESET AND RELEARN ADAPTIVE VALUES

AUTOMATIC TRANSAXLE CONTROL MODULE - RESET AND RELEARN ADAPTIVE VALUES

TECHNICAL SERVICE BULLETIN

Reference Number(s): 10-AT-011, Date of Issue:  August, 2010
HYUNDAI: All
GROUP: Automatic Transaxle
Superceded Bulletin(s): 09-AT-002-1, Date of Issue:  December, 2009
NOTE: This bulletin supersedes TSB 09-AT-002-1 to include Equus and Sonata HEV.
CAUTION: After replacing a transaxle or reprogramming the PCM/TCM, to improve the shift quality condition, follow this procedure to reset and relearn the adaptive learning.

DESCRIPTION

The PCM or TCM contains logic to adjust solenoid duty and line pressure as needed to compensate for normal clutch wear over the life of the transaxle. This bulletin provides the procedures necessary to reset (erase) and "relearn" the PCM/TCM adaptive values.

After the following repairs have been completed, the PCM/TCM adaptive values must be reset in order to provide optimum shift quality:

I. RESET PCM/TCM ADAPTIVE VALUES WITH GDS:

  1. Attach a GDS and select VIN and A/T  menu.

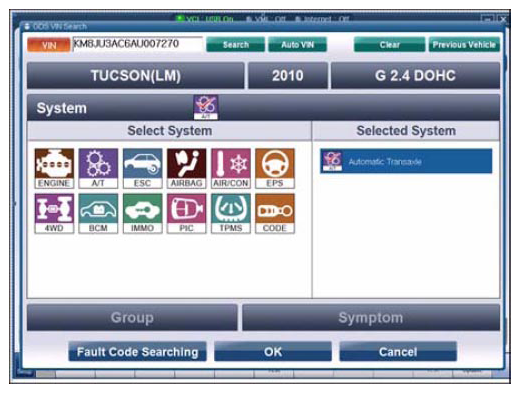

    G06948843
  2. From the main screen, select "Option Treatment"

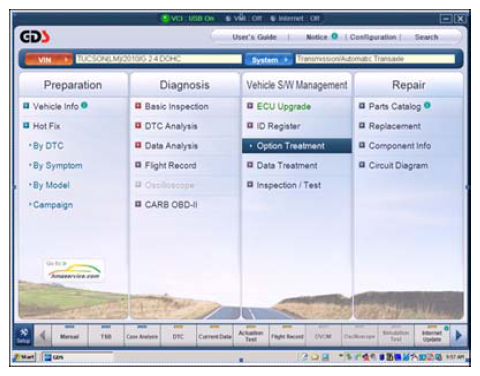

    G06948844
  3. Select "Resetting Auto T/A values"  and follow the screen prompts. Turn the ignition key off for 10 seconds.

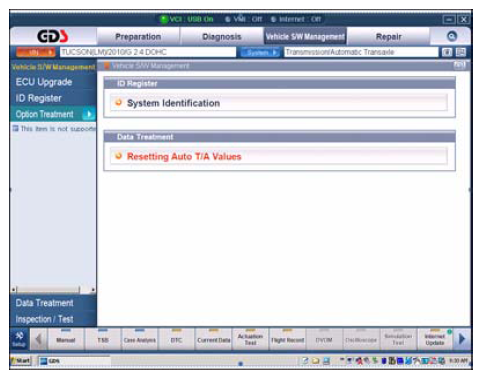

    G06948845
    NOTE: GDS must be used to reset the adaptive learning for the following vehicles.
    GDS INFORMATION

    MODEL ENGINE GDS REQUIRED COMMENT
    2000~ ACCENT 1.6L 2006 MY~
    2001~06 ELANTRA 1.6L 12/01/2002~
    2007~ ELANTRA SEDAN
    2009~ ELANTRA TOURING    		 2.0L
    2.0L    		 12/01/2002~
    2009~
    2003~08 TIBURON 2.0L, 2.7L 2005 MY~
    2005~09 TUCSON 2.0L, 2.7L 2005 MY~
    2010~ TUCSON 2.4L ALL
    2001~06 SANTA FE 2.4L, 2.7L, 3.5L 2005 MY~
    2007~ 09 SANTA FE 2.7L, 3.3L ALL
    2010~ SANTA FE 2.4L, 3.5L ALL
    1999~2005 SONATA 2.4L, 2.7L 2005 MY~
    2006~10 SONATA 2.4L, 3.3L ALL
    2011~ SONATA 2.4L, 2.0L Turbo ALL
    2011~ SONATA HYBRID 2.4L ALL
    2002~05 XG350 3.5L 2005 MY~
    2006~10 AZERA 3.3L & 3.8L ALL
    2011~ AZERA 3.3L & 3.8 ALL
    2007~08 ENTOURAGE 3.8L ALL
    2007~ VERACRUZ 3.8L ALL
    2009~ GENESIS SEDAN 3.8L ALL
    4.6L ALL (1) See Note
    2010~ GENESIS COUPE 2.0L Turbo ALL Reset TCU Sub-ROM if ATM replaced
    3.8L ALL (1) See Note
    2011~ EQUUS SEDAN 4.6L ALL (1) See Note
    (1) Clear CAN Learnable Status only if Mechatronics (valve body) is exchanged from another vehicle (Genesis 4.6L, Equus 4.6l, and Genesis Coupe 3.8L with ZF transmission).

    II. RELEARN ADAPTIVE VALUES:

    NOTE: After the adaptive values have been reset (erased), an "adaptive learning" procedure must be completed as shown below.
  4. Attach a GDS and select VIN and A/T.
  5. Select Current Data and "Throttle Position".

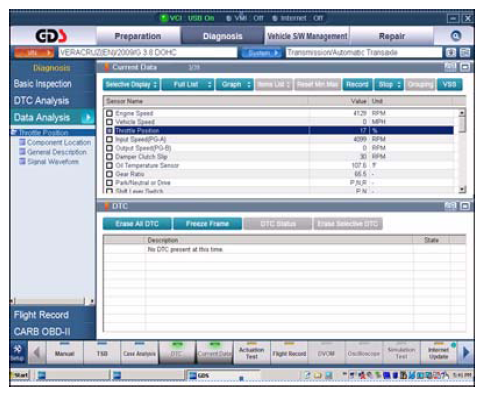

    G06948846
  6. Drive the vehicle until the ATF temperature is within the range shown in the ATF TEMPERATURE RANGES  Table.
  7. Request an assistant to monitor the GDS. Accelerate from a stop at the specified TPS specification while the transmission shifts through gears 1-2-3-4-5-6 and decelerate slowly to a stop. Stop for 5 seconds. Repeat 5 times.
    NOTE: Hold the accelerator pedal steady during the upshifts.
    CAUTION: Do not exceed legal speed limits.

    If additional adaptation is needed, perform the following additional procedures:

  8. Perform several sequential downshifts (5-4, 4-3, 3-2 and 2-1) at small to moderate throttle openings.
  9. Perform several skip shifts (6-4, 5-3, 5-2, 3-1, etc.) at moderate to large throttle openings.
  10. With the vehicle stopped, move the shift lever from P to N to D and back, stopping 3~5 seconds in each gear. Repeat 5 times.
NOTE: Adaptive learning occurs only within the ATF temperature ranges shown:
ATF TEMPERATURE RANGES

MODEL ENGINE TPS ATF TEMPERATURE FOR LEARNING
122~194°F (50~90°C) 50~122°F (10~50°C)
2000~ ACCENT 1.6L 25~35% ALL
2001~06 ELANTRA 1.6L 25~35% ALL
2007~ ELANTRA SEDAN
2009~ ELANTRA TOURING		 2.0L
2.0L		 25~35%
25~35%		 ~11/21/2001 11/21/2001~ALL
2003~08 TIBURON 2.0L, 2.7L 25~35% 1997~2001 MY 2003 MY~
2005~09 TUCSON 2.0L, 2.7L 25~35%   2005 MY~
2010~ TUCSON 2.4L 15~20% 140~240°F (65~115°C)
2001~06 SANTA FE 2.4L 25~35% 2001~02 MY 2003 MY~
2.7L 25~35% ~01/17/2002 01/17/2002~
3.5L 25~35%   2003 MY~
2007~09 SANTA FE 2.7L, 3.3L 25~35%   ALL
2010~ SANTA FE 2.4L, 3.5L 15~20% 140~240°F (65~115°C)
1999~2005 SONATA 2.4L, 2.7L 25~35% ~11/30/2001 11/30/2001~
2006~10 SONATA 2.4L, 3.3L 25~35%   2006 MY~
2011~ SONATA 2.4L, 2.0L 15~20% 140~240°F (65~115°C)
2011~ SONATA HYBRID 2.4L 15~20% 104~174°C (40~90°C)
2001 XG300 3.0L 25~35% 2001 MY ~
2002~05 XG350 3.5L 25~35%   2002 MY~
2006~10 AZERA 3.3 & 3.8L 25~35%   ALL
2011~ AZERA 3.3 & 3.8L 15~20% 140~240°F (65~115°C)
2007~08 ENTOURAGE 3.8L 25~35%   ALL
2007~ VERACRUZ 3.8L 25~35% 151~230°F (66~110°C)~
2009~ GENESIS SEDAN V6 3.8L 25~35% 122~248°F (50~120°C)
2009~ GENESIS SEDAN V8 4.6L 13~17% 122~248°F (50~120°C)
2010~ GENESIS COUPE I4 2.0L 10~13% 68~248°F (20~120°C)
2010~ GENESIS COUPE V6 3.8L 15~20% 122~248°F (50~120°C)
2011~ EQUUS 4.6L 4.6L 13~17% 122~248°F (50~120°C)
