Components and Components Location: Components

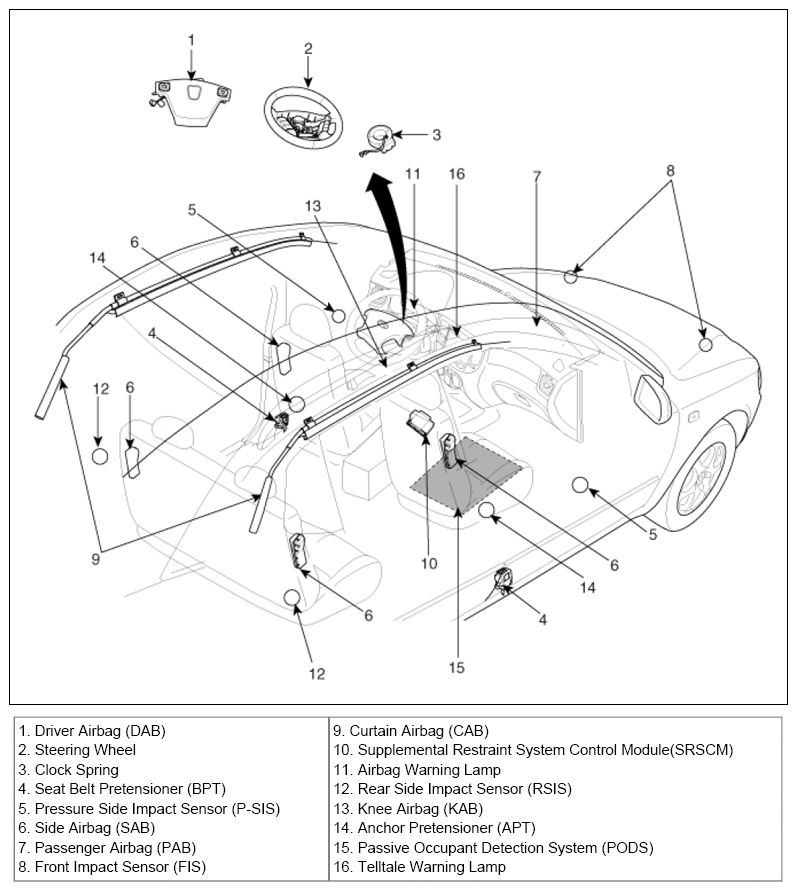

Fig 1: Restraint Components Location
G07312011Courtesy of HYUNDAI MOTOR CO.
