Cruise Control Switch





Removal

1. Disconnect the battery (-) terminal.
2. Disconnect the cruise control main switch connector.
3. Remove the air-bag module from the steering wheel.
4. Remove the cruise control switch (A) by loosening the screws.




5. Installation is the reverse of removal.

Inspection

Measuring Resistance
1. Disconnect the cruise control switch connector from the control switch.




2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).





3. If not within specification, replace switch.

Measuring Voltage
1. Connect the cruise control switch connector to the control switch.

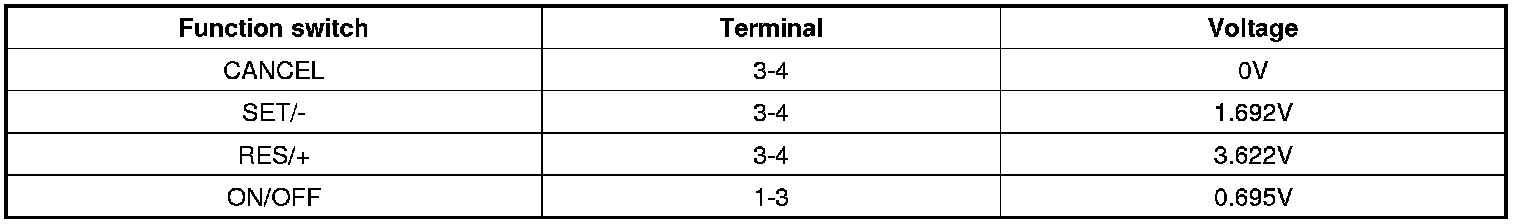

2. Measure voltage between terminals on the harness side connector when each function switch is ON (switch is depressed).





3. If not within specification, replace switch.
