JS11 Joint Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

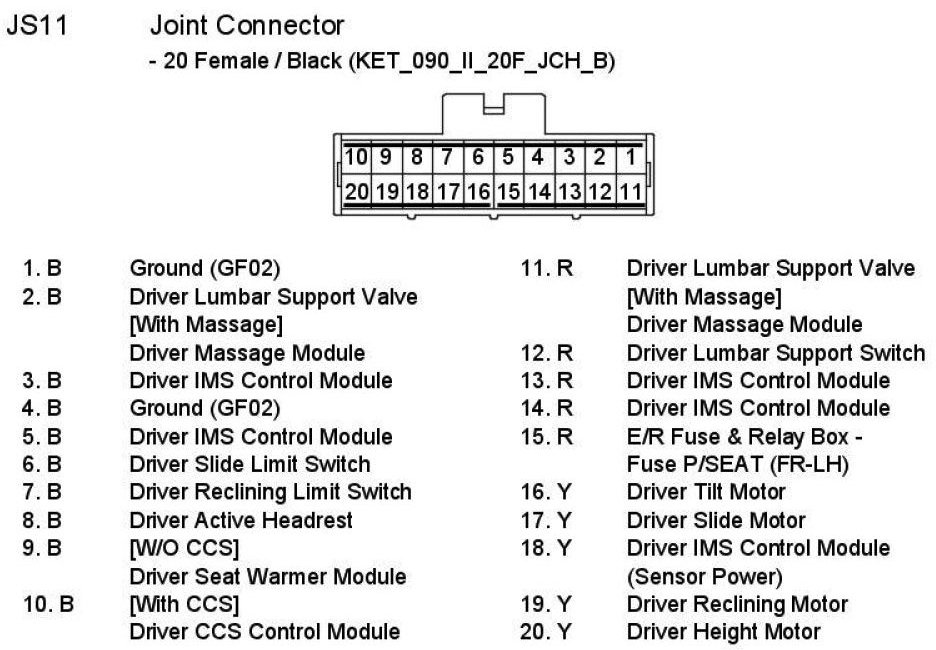

JS11 Joint Connector
JS11 Joint Connector:
