Assist Power Window Switch

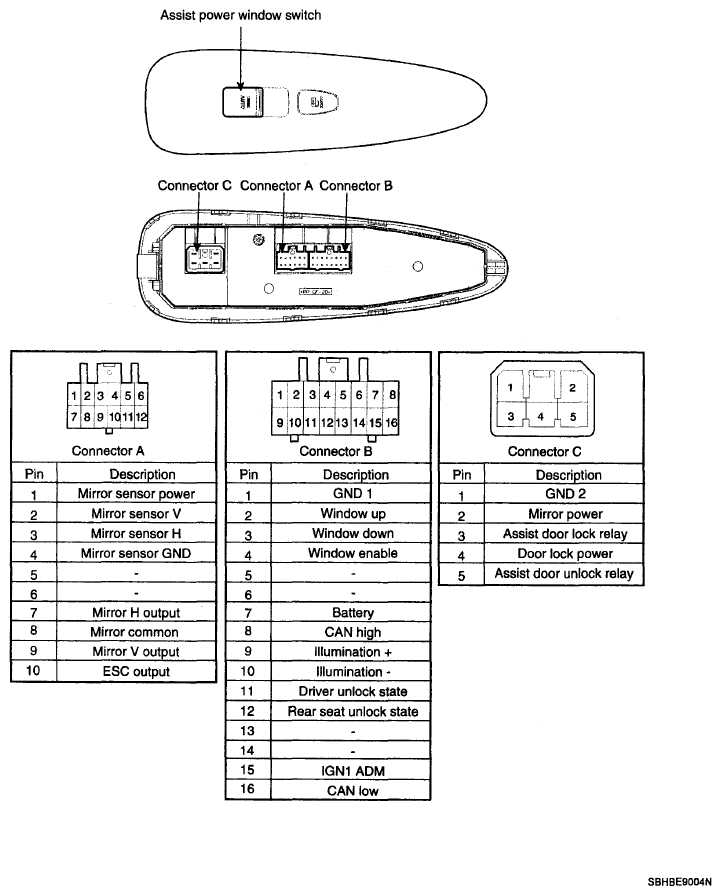

Fig 1: Assist Power Window Switch Reference Chart
G06103933Courtesy of HYUNDAI MOTOR CO.
