Components Location

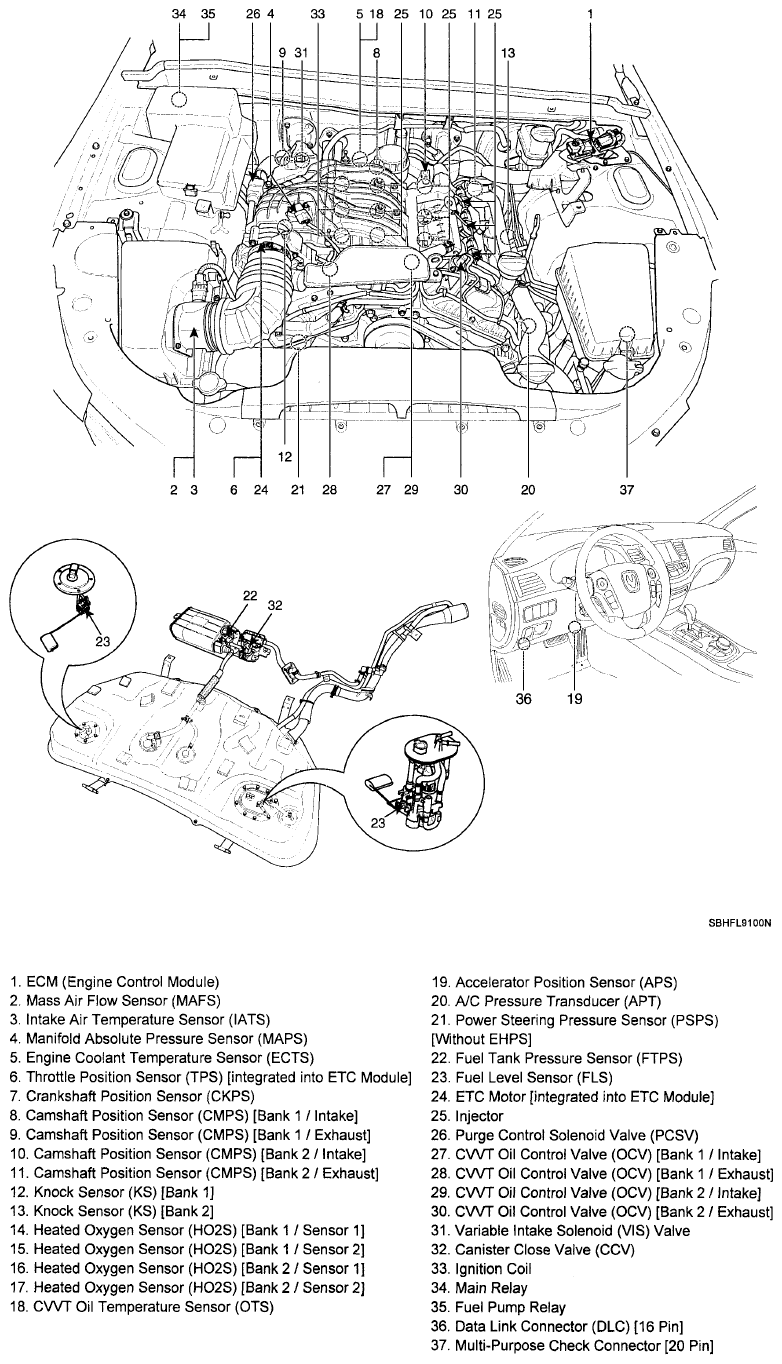

Fig 1: Identifying Engine Control System Components Location (1 Of 6)

Courtesy of HYUNDAI MOTOR CO.

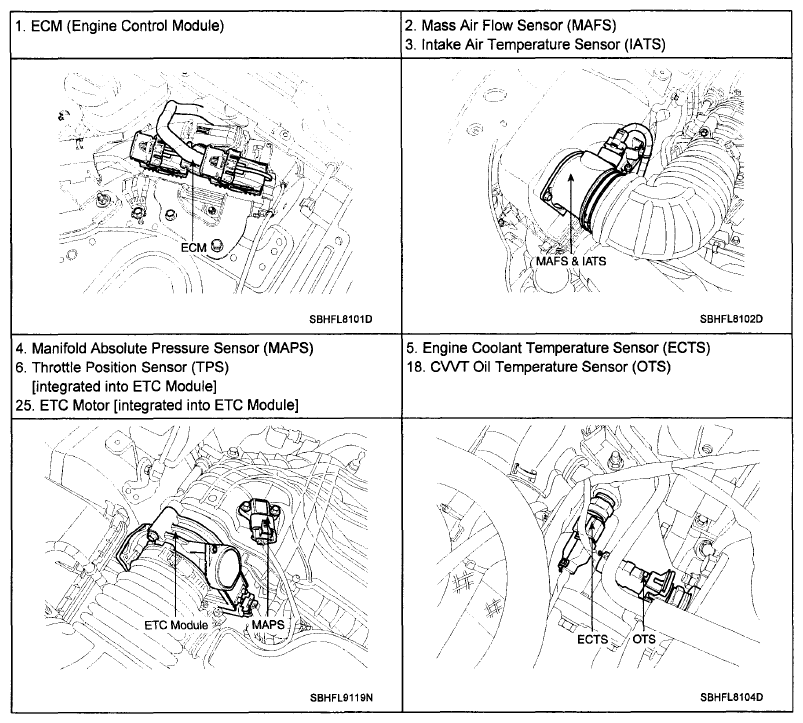

Fig 2: Identifying Engine Control System Components Location (2 Of 6)

Courtesy of HYUNDAI MOTOR CO.

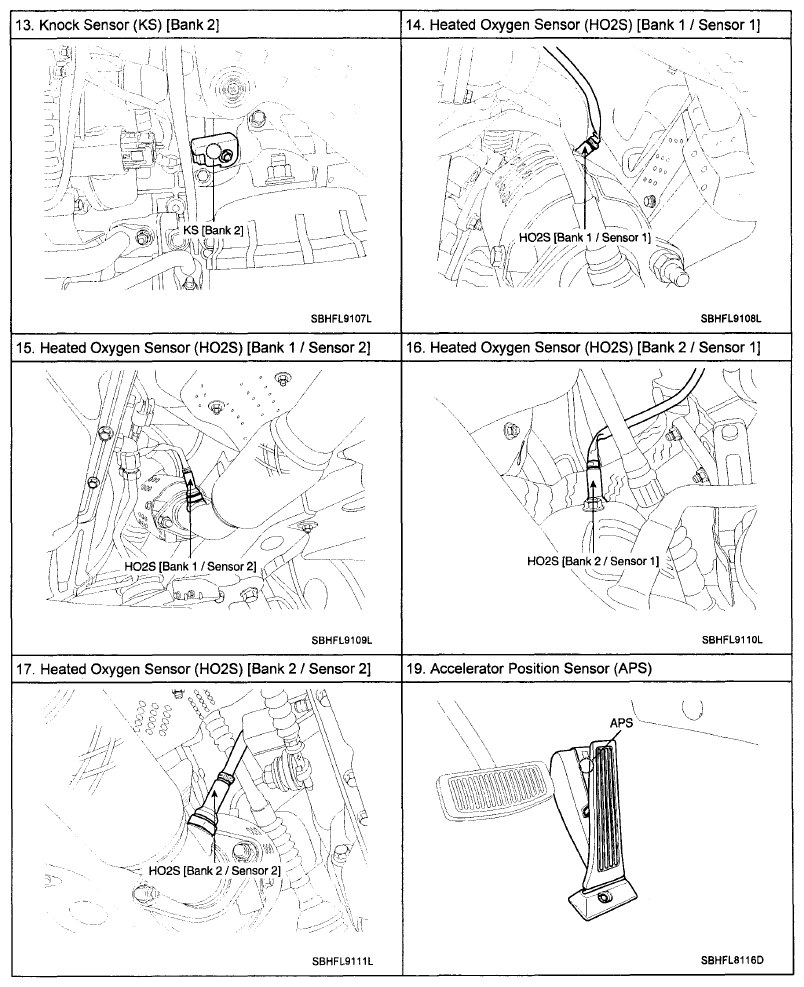

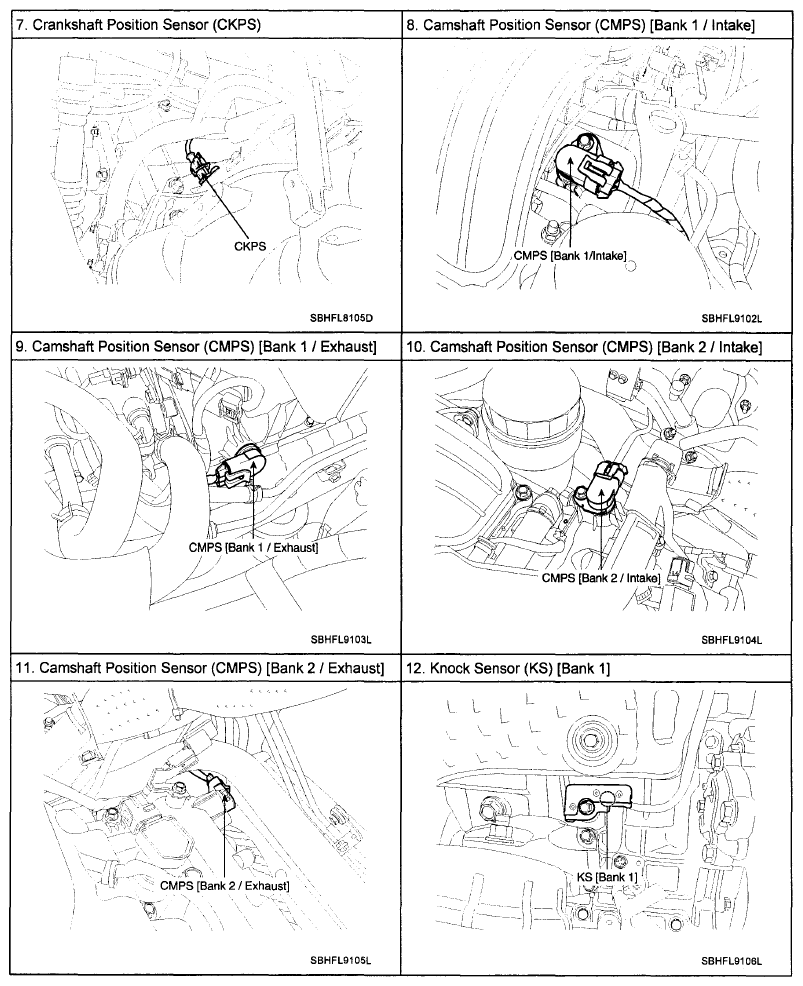

Fig 3: Identifying Engine Control System Components Location (3 Of 6)

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Engine Control System Components Location (4 Of 6)

Courtesy of HYUNDAI MOTOR CO.

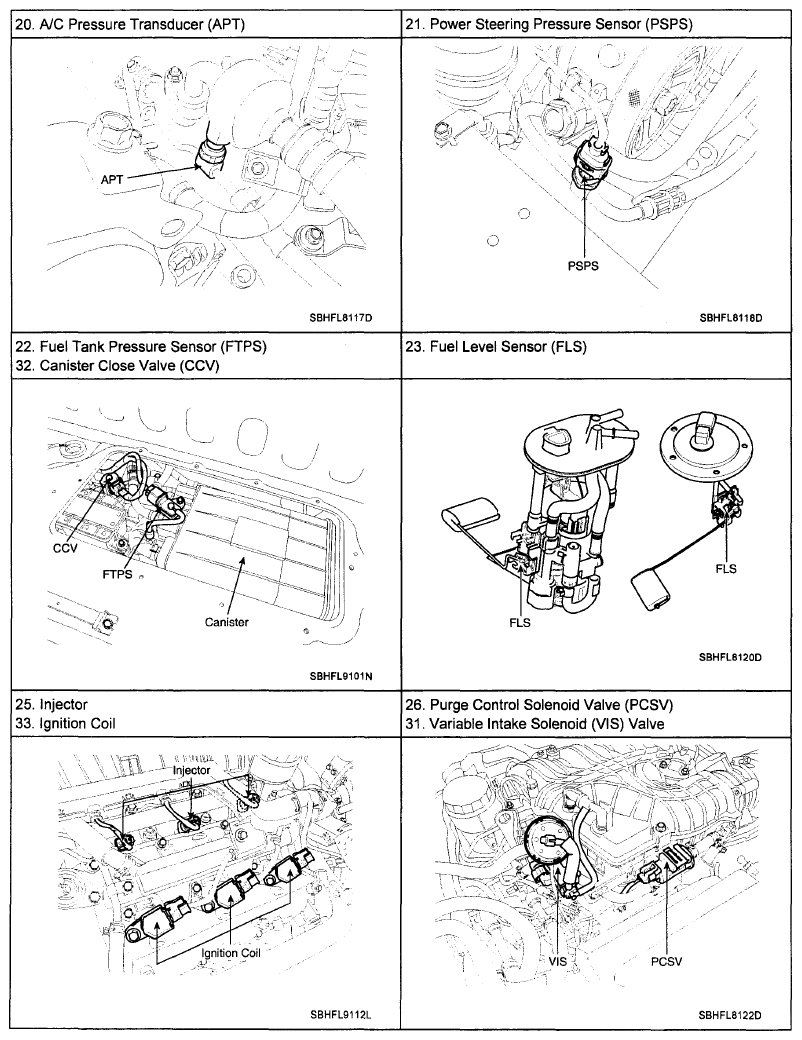

Fig 5: Identifying Engine Control System Components Location (5 Of 6)

Courtesy of HYUNDAI MOTOR CO.

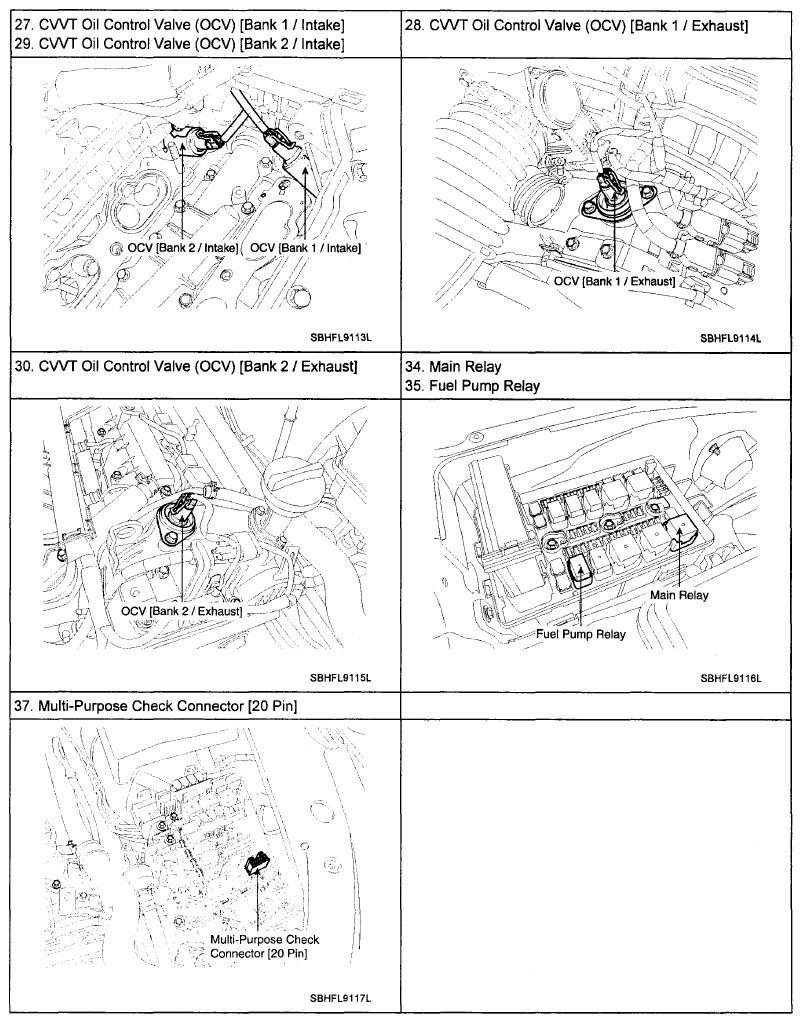

Fig 6: Identifying Engine Control System Components Location (6 Of 6)

Courtesy of HYUNDAI MOTOR CO.
