Circuit Diagram

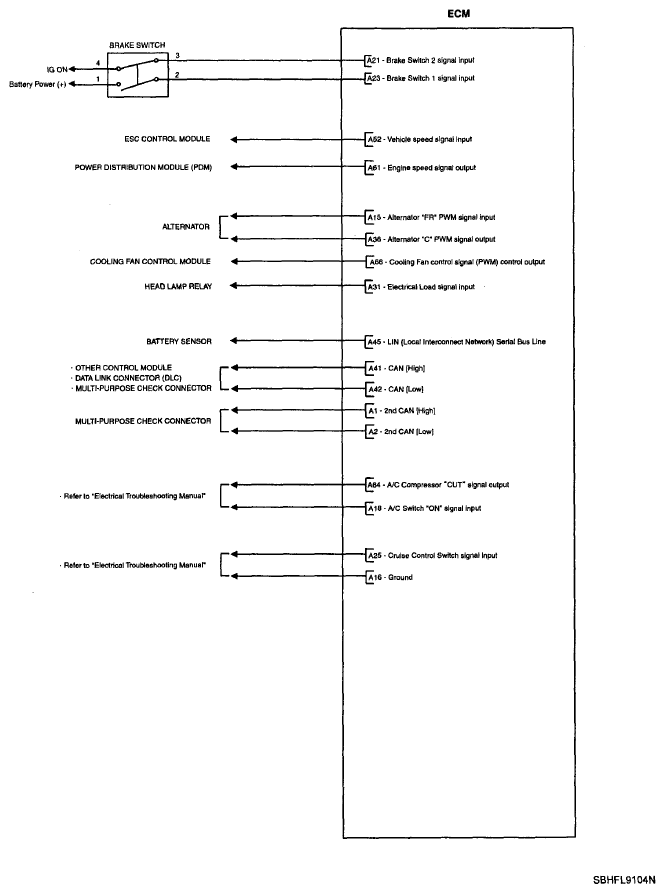

Fig 1: Engine Control System Diagram (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

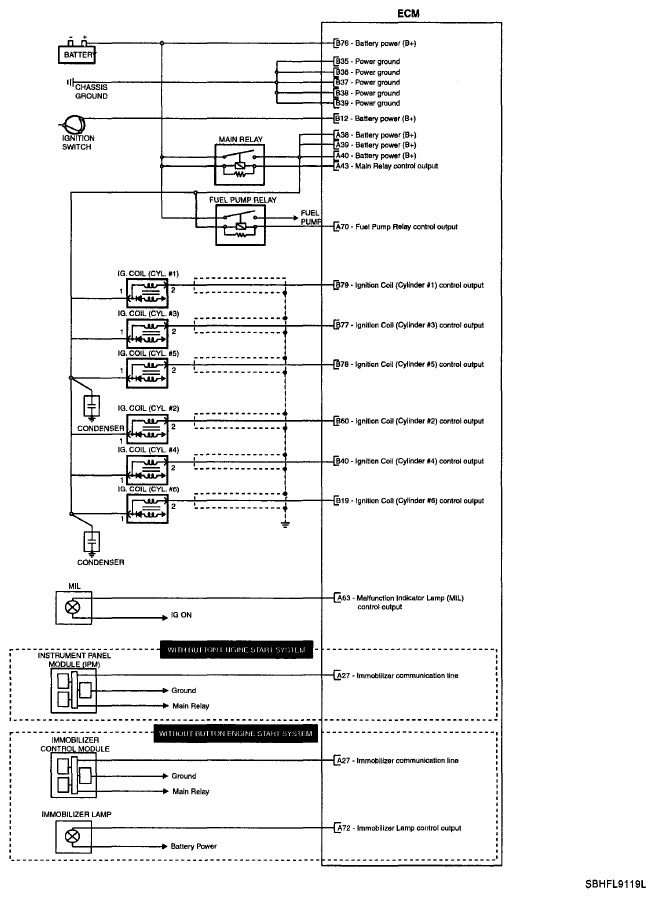

Fig 2: Engine Control System Diagram (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

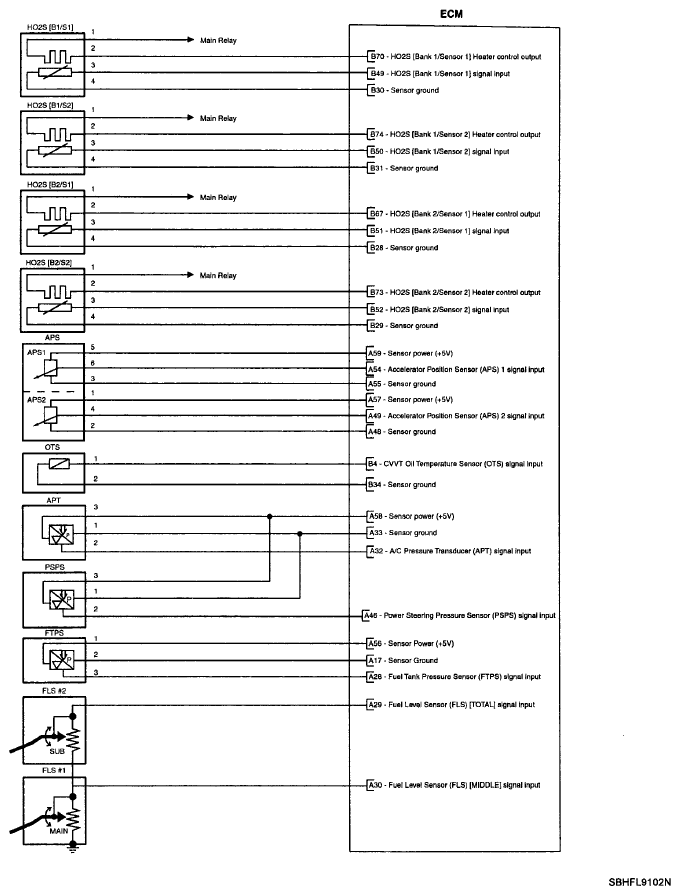

Fig 3: Engine Control System Diagram (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

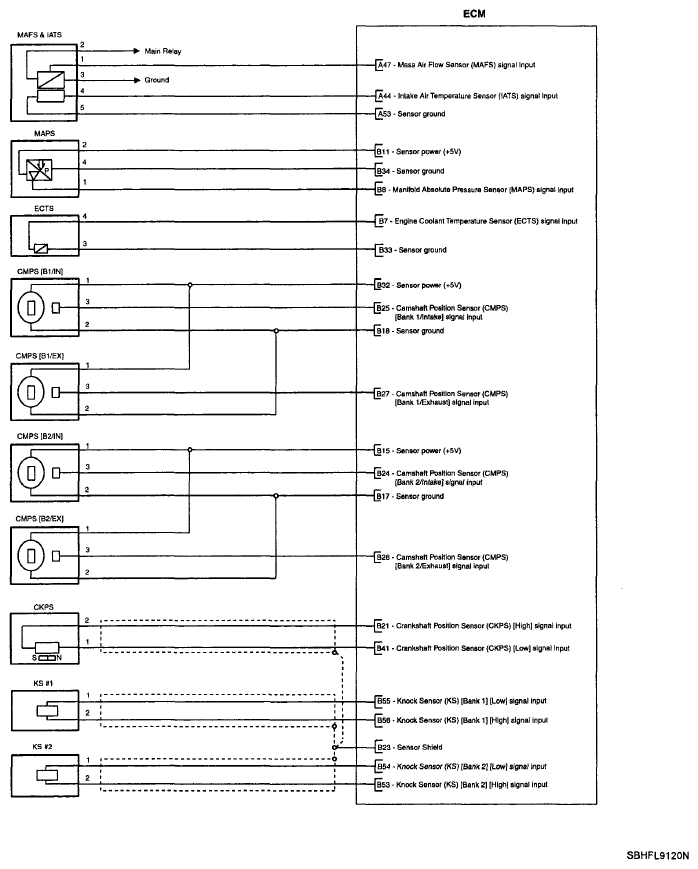

Fig 4: Engine Control System Diagram (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

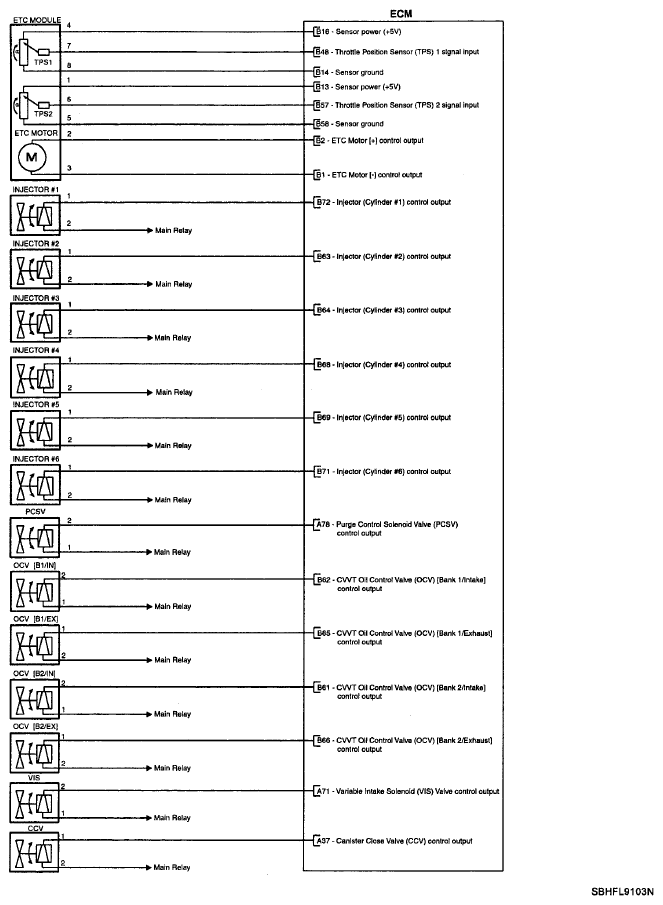

Fig 5: Engine Control System Diagram (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
