Transaxle Oil Temperature Sensor: Removal

Remove the drain plug and the gasket from the oil pan to drain ATF.
Remove the 20 bolts.

Fig 1: Locating Oil Pan Bolts
Courtesy of HYUNDAI MOTOR CO.
Take off the oil pan by using the special service tool (09215-3C000) or a plastic hammer with care.
CAUTION:
- Be careful not to damage the fitting surfaces of the transmission case and the oil pan.
- Be careful not to deform the oil pan.
Remove the 3 oil cleaner magnets from the oil pan.

Fig 2: Locating Oil Cleaner Magnets
Courtesy of HYUNDAI MOTOR CO.
Remove the 4 bolts to remove the oil strainer from the valve body assembly.

Fig 3: Locating Oil Strainer Bolts
Courtesy of HYUNDAI MOTOR CO.

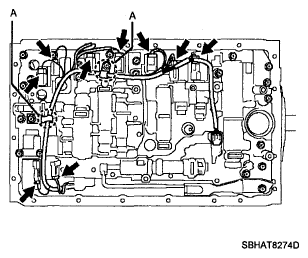

Disconnect the 9 solenoid connectors from the solenoids and the transmission wire from the 2 clamps (A).

Fig 4: Locating Solenoid Connectors
Courtesy of HYUNDAI MOTOR CO.
Remove the bolt to remove the locking plate from the valve body assembly.
NOTE: The ATF oil temperature sensor is place in the locking plate.

Fig 5: Locating Locking Plate Bolts
Courtesy of HYUNDAI MOTOR CO.
Pull out solenoid valve connector and the O-ring after removing the bolt.

Fig 6: Locating Solenoid Valve Connector With Bolt
Courtesy of HYUNDAI MOTOR CO.
Pull out the transmission wire through the hole for the connector.
CAUTION: Be careful not to damage the connector and sensor on the wire.
