Engine Control Module (ECM): Removal

NOTE: In the case of the vehicle equipped with immobilizer, perform "Key Teaching" procedure together (Refer to TEACHING PROCEDURES ).
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the cover
  3. Disconnect the ECM connector (A) and the TCM connector (B).
  4. Remove the ECM & TCM bracket installation bolts (C) and nut (D).

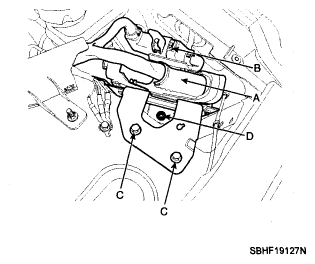

    5. Fig 1: Identifying TCM And ECM Connectors
    G06106245Courtesy of HYUNDAI MOTOR CO.
  5. After removing the installation bolts (A), remove the ECM (B) from the bracket.

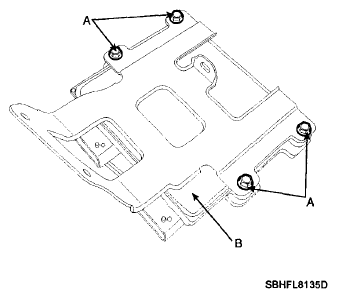

    Fig 2: Identifying ECM Bracket Bolts
    G06106124Courtesy of HYUNDAI MOTOR CO.
