General Information (Restraints): Components: Notes

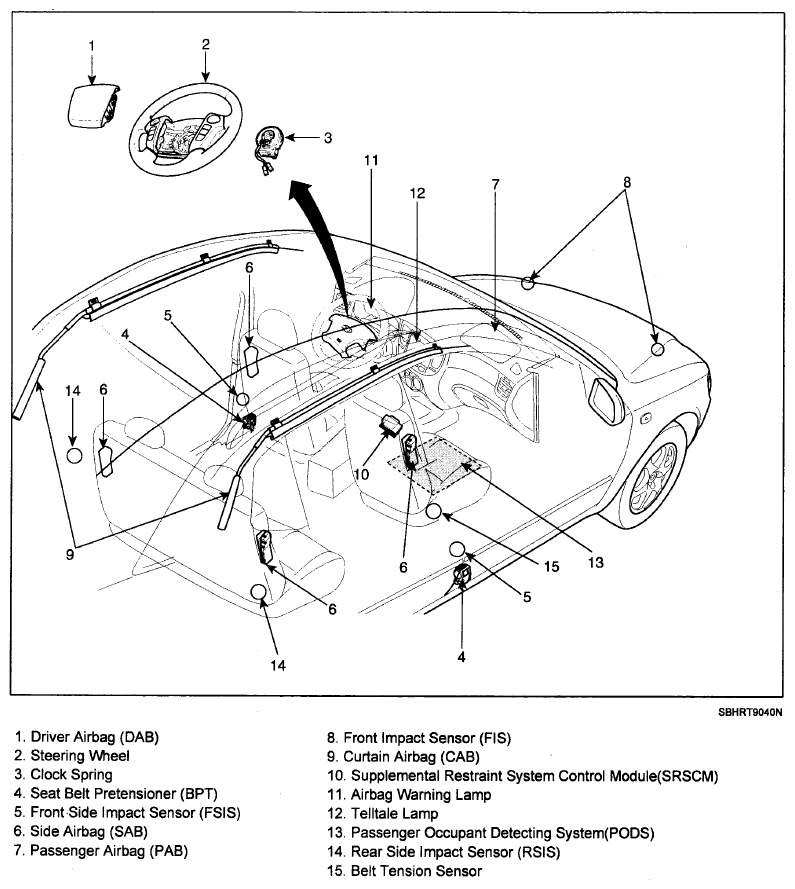

Fig 1: Identifying Restraint Components
G06103161Courtesy of HYUNDAI MOTOR CO.
