Components and Components Location: Components

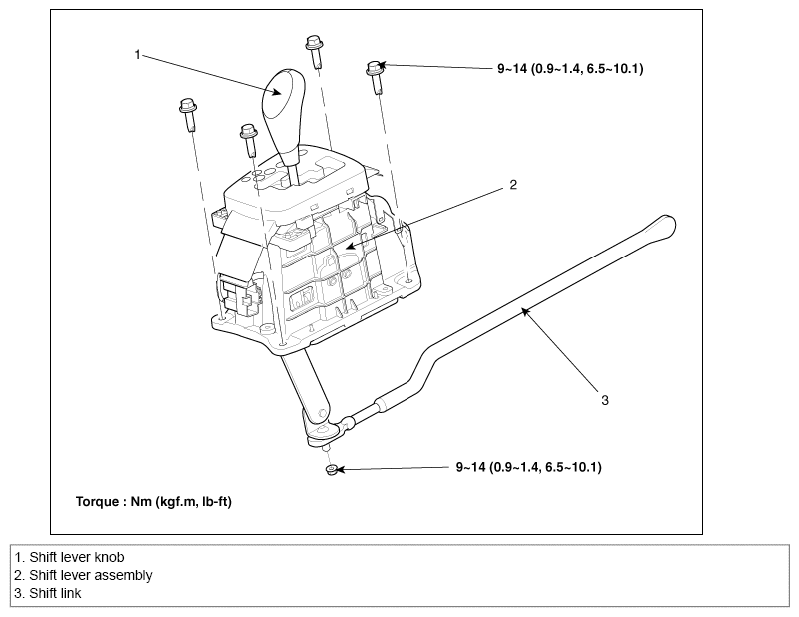

Fig 1: Shift Lever Replacement Components With Torque Specifications
G06514484Courtesy of HYUNDAI MOTOR CO.
