Components And Components Location

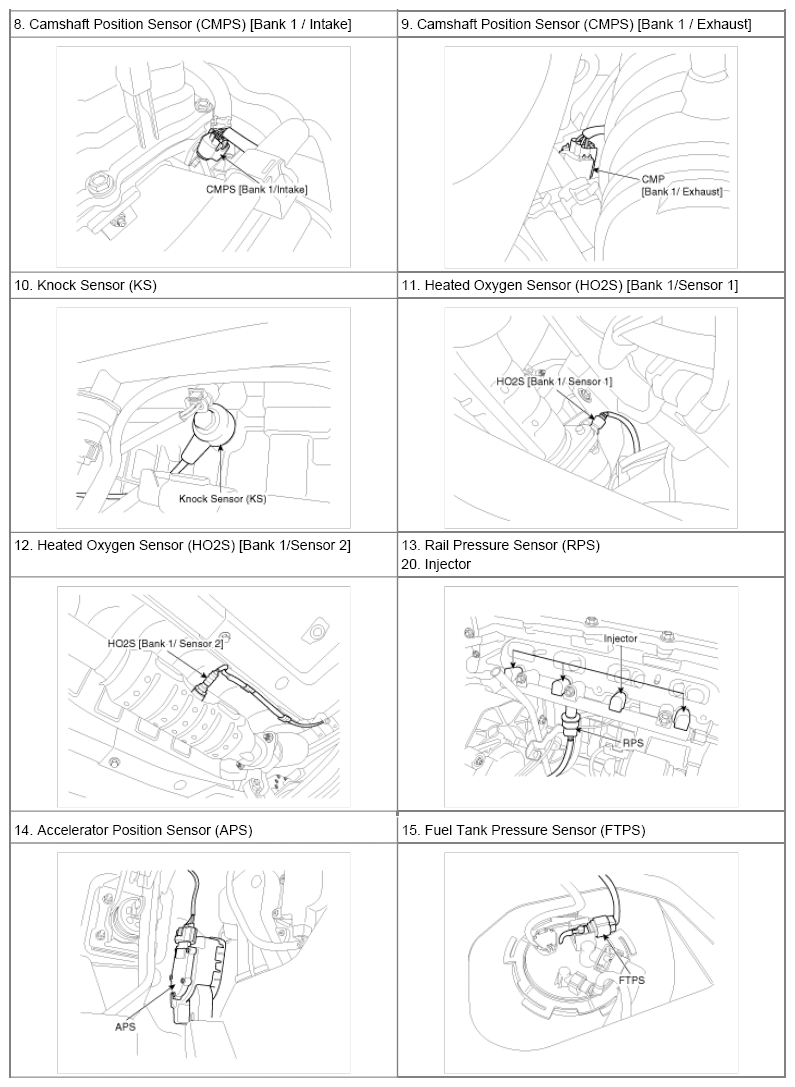

Fig 1: Identifying Engine Control System Components (1 Of 6)

Courtesy of HYUNDAI MOTOR CO.

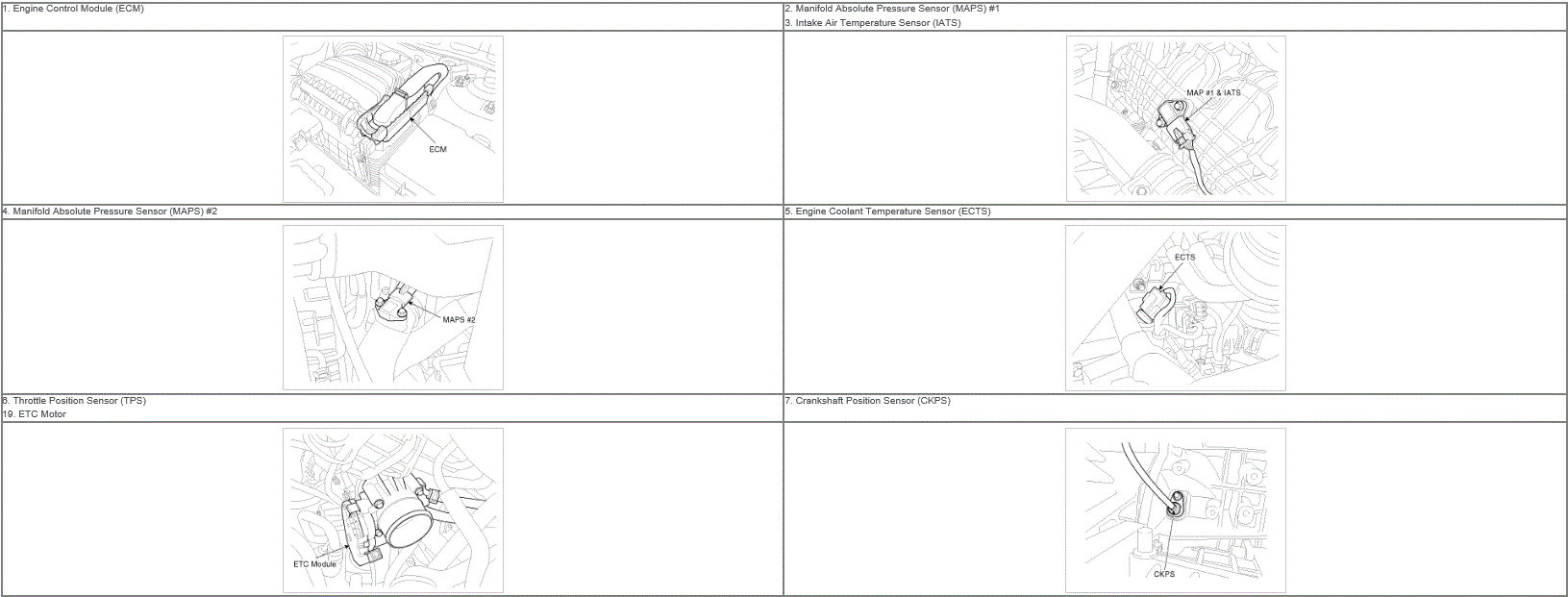

Fig 2: Identifying Engine Control System Components (2 Of 6)

Courtesy of HYUNDAI MOTOR CO.

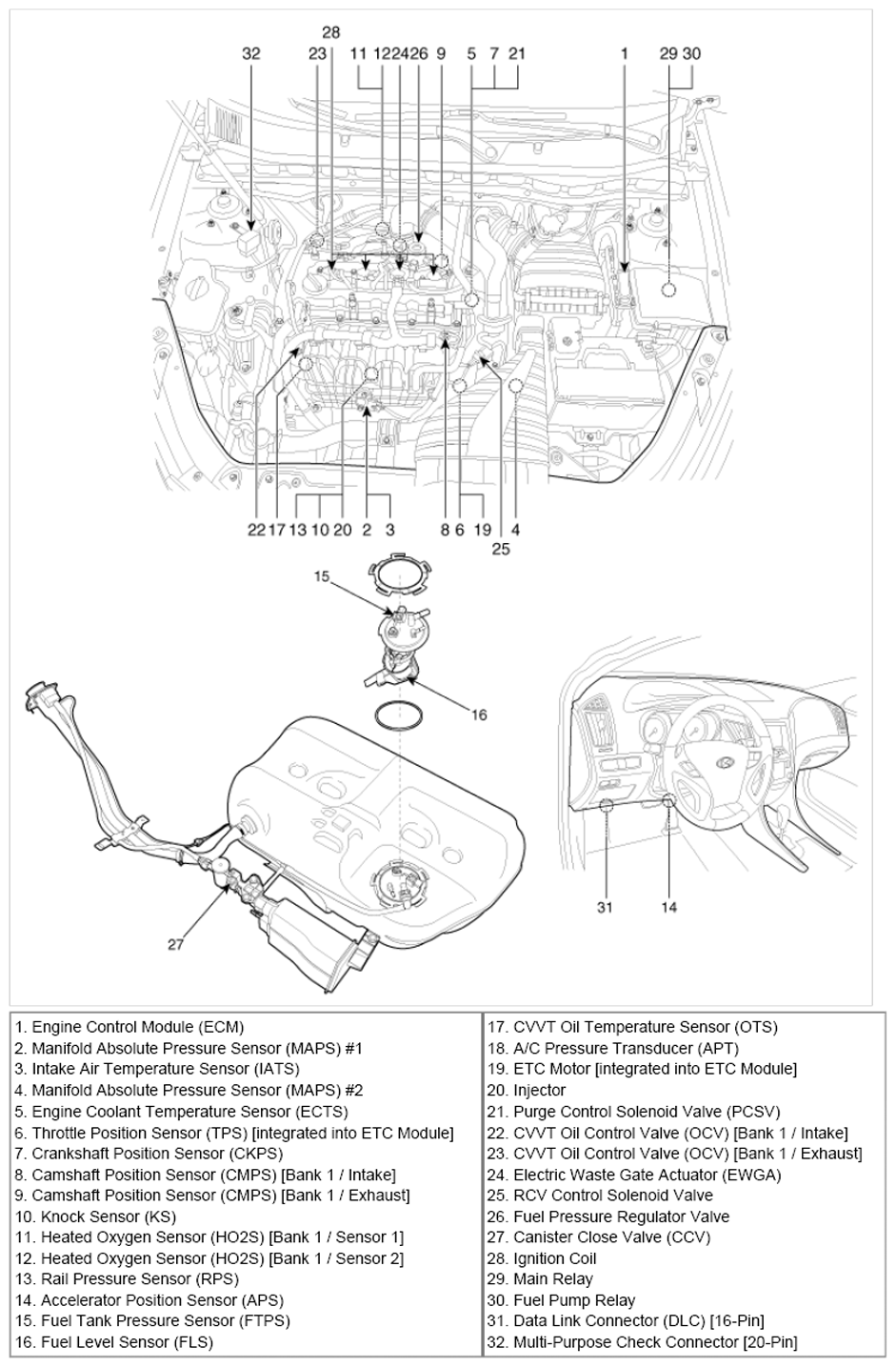

Fig 3: Identifying Crankshaft Position Sensor (CKPS) (3 Of 6)

Courtesy of HYUNDAI MOTOR CO.

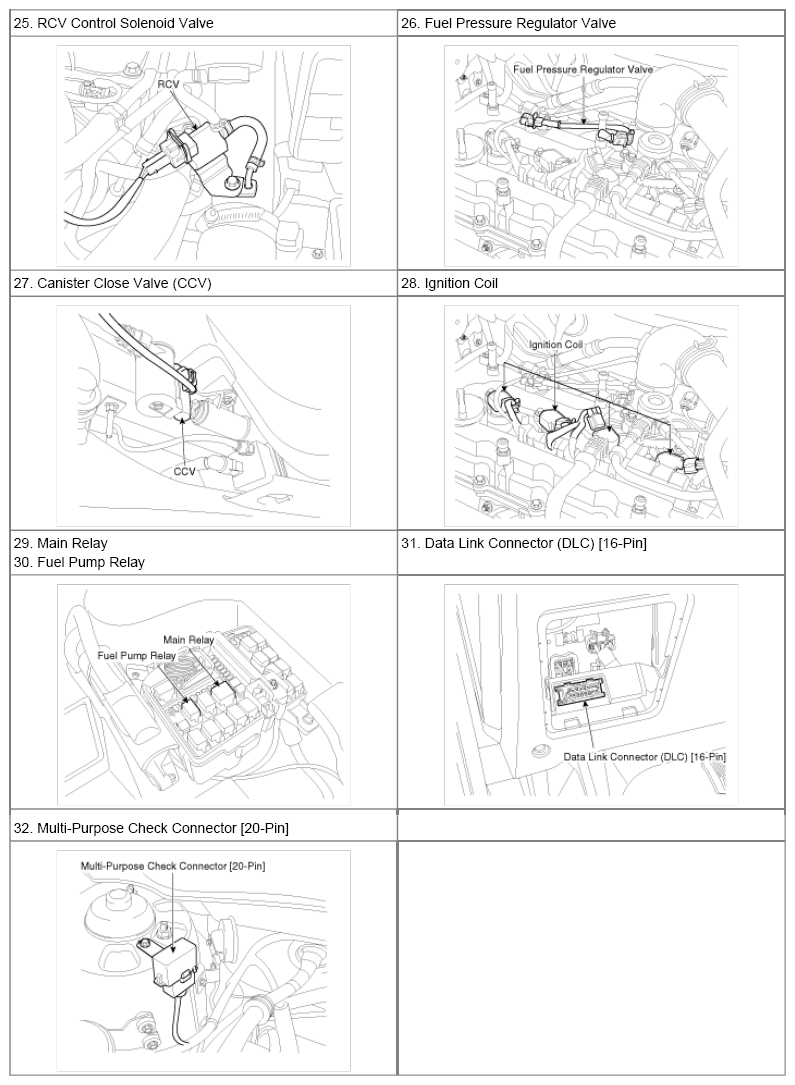

Fig 4: Identifying Engine Control System Components (4 Of 6)

Courtesy of HYUNDAI MOTOR CO.

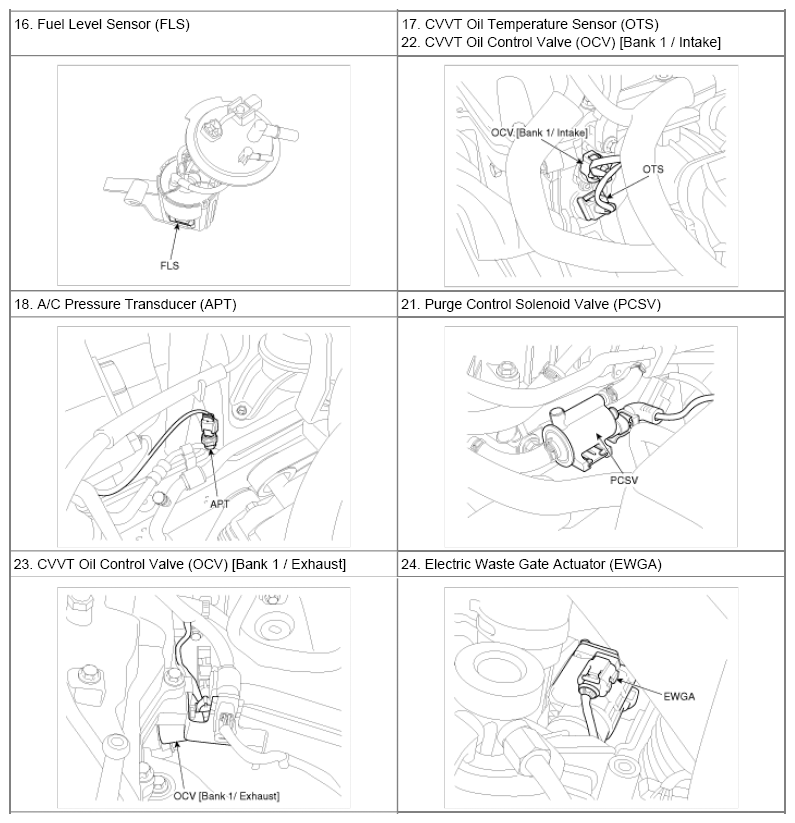

Fig 5: Identifying Engine Control System Components (5 Of 6)

Courtesy of HYUNDAI MOTOR CO.

Fig 6: Identifying Engine Control System Components (6 Of 6)

Courtesy of HYUNDAI MOTOR CO.
