Electric WGT Control Actuator: Specifications: Specification

[EWGA Position Sensor]

VOLTAGE SPECIFICATION CHART

Position	Output Voltage[V]	Operating Angle[°]	Range of Rod [mm], reference
Mechanical Close end stop Position (MCP)	4.8	0	0
Electrical Close end stop Position (ECP)	4.2	12	1.8
Electrical Open end stop Position (EOP)	1	79	16
Mechanical Open end stop Position (MOP)	0.5	90	18

Fig 1: Identifying ECP, MCP, EOP And MOP

Courtesy of HYUNDAI MOTOR CO.

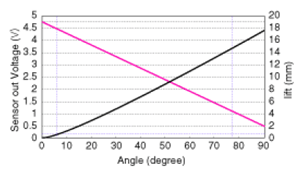

Fig 2: EWGA Position Sensor Output Voltage Graph

Courtesy of HYUNDAI MOTOR CO.

[EWGA DC Motor]

ITEM SPECIFICATION CHART

Item	Specification
Coil Resistance (Ω)	1.48 ~ 1.96 [21°C (69.8°F)]
