Floor Console Replacement: [A/T]

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

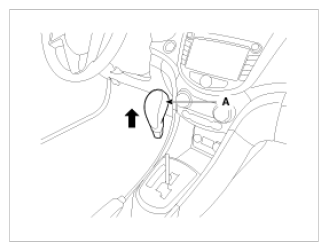

Remove the gear knob (A).

Fig 1: Removing Gear Knob
Courtesy of HYUNDAI MOTOR AMERICA

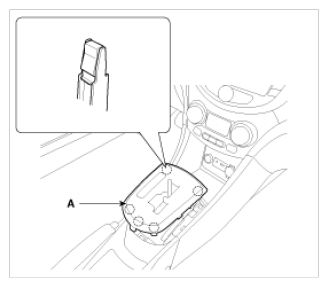

Using a screwdriver or remover, remove the console upper cover (A).

Fig 2: Removing Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA

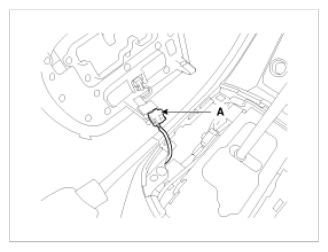

Disconnect the connector (A).

Fig 3: Identifying Connector
Courtesy of HYUNDAI MOTOR AMERICA

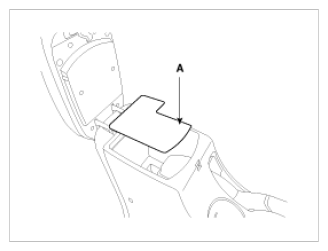

Remove the console tray mat (A).

Fig 4: Identifying Console Tray Mat
Courtesy of HYUNDAI MOTOR AMERICA

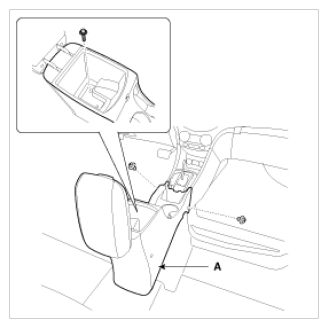

After loosening the mounting bolt and clips, then remove the floor rear console (A).

Fig 5: Identifying Floor Rear Console
Courtesy of HYUNDAI MOTOR AMERICA

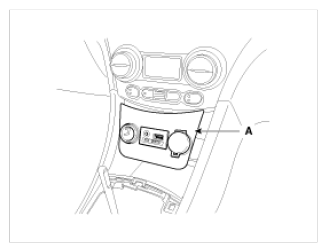

Using a screwdriver or remover, remove the floor console front bezel (A).

Fig 6: Removing Floor Console Front Bezel
Courtesy of HYUNDAI MOTOR AMERICA

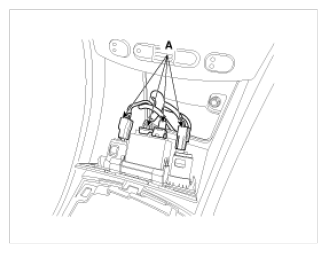

Disconnect the connectors (A).

Fig 7: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA

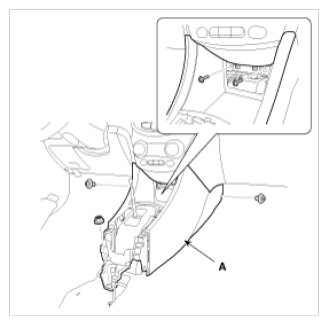

After loosening the mounting bolts and nut, clips, then remove the floor front console (A).

Fig 8: Identifying Floor Front Console
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damaged clips.
