Heater Control Unit Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

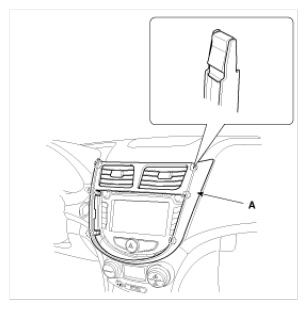

Using a screwdriver or remover, remove the center facia panel (A).

Fig 1: Removing Center Facia Panel
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the audio assembly (A).

Fig 2: Identifying Audio Assembly
Courtesy of HYUNDAI MOTOR AMERICA

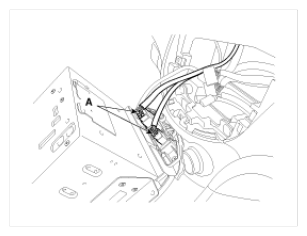

Disconnect the connectors.

Fig 3: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA

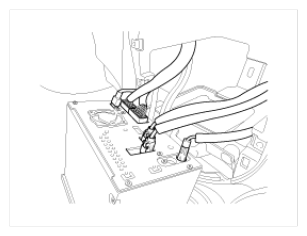

Disconnect the connectors (A).

Fig 4: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA

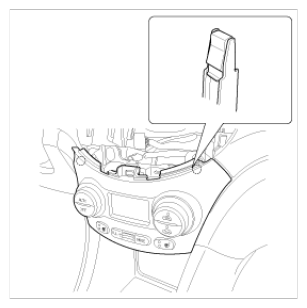

Using a screwdriver or remover, remove the heater control unit (A).

Fig 5: Removing Heater Control Unit
Courtesy of HYUNDAI MOTOR AMERICA

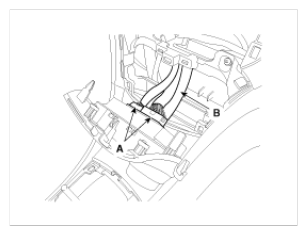

Disconnect the connectors (A) and hose (B).

Fig 6: Identifying Connectors And Hose
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
