Overhead Console Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Put on gloves to protect your hands.

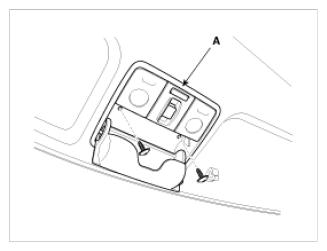

After loosening the mounting screws, remove the overhead console assembly (A).

Fig 1: Identifying Overhead Console Assembly
Courtesy of HYUNDAI MOTOR AMERICA

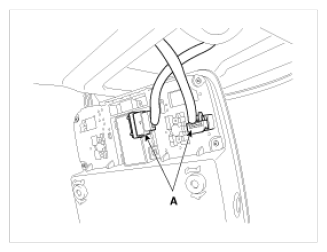

Disconnect the connectors (A).

Fig 2: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector is connected properly.
