Repair Procedures: Replacement: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the following items.
    1. Front pillar trim

      (Refer to "Front Pillar Trim Replacement ")

    2. Wiper arm

      (Refer to "COWL TOP COVER ")

    3. Cowl top cover

      (Refer to "COWL TOP COVER ")

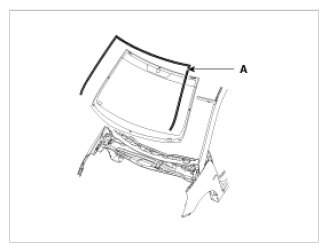

  2. Using a screwdriver or remover, remove the windshield molding (A).
    Fig 1: Identifying Windshield Molding
    G08806042Courtesy of HYUNDAI MOTOR AMERICA

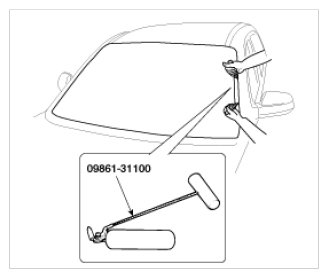

  3. Cut out the sealant using the sealant cutting tool (09861-31100).
    Fig 2: Cutting Out Sealant
    G08806043Courtesy of HYUNDAI MOTOR AMERICA

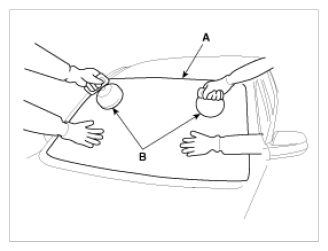

  4. Remove the windshield glass (A) carefully using the glass holder (B).
    Fig 3: Removing Windshield Glass
    G08806044Courtesy of HYUNDAI MOTOR AMERICA
