Components and Components Location: Components

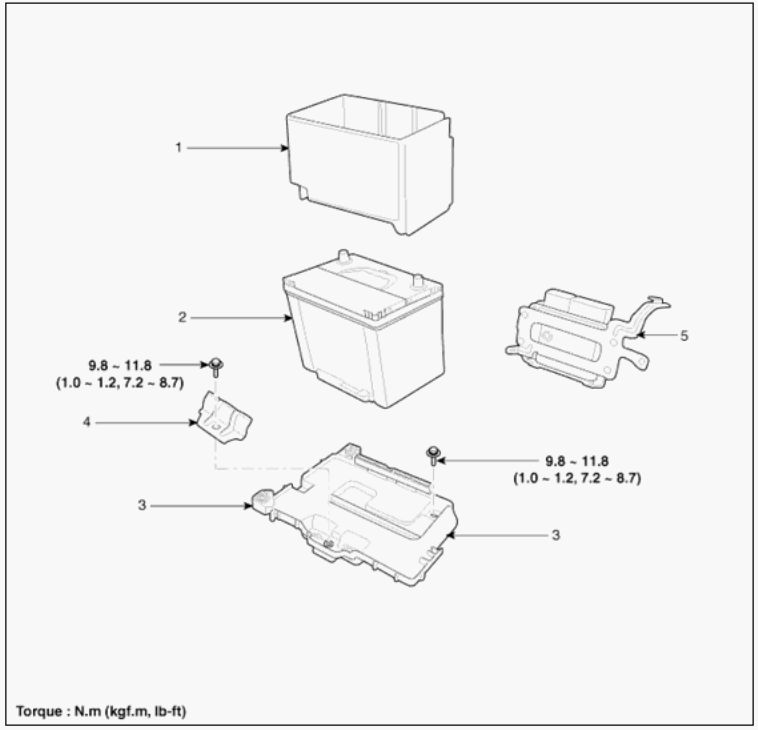

Fig 1: Battery Replacement Components With Torque Specifications
G08804268Courtesy of HYUNDAI MOTOR AMERICA
1. Battery insulation pad 4. Battery mounting bracket`
2. Battery 5. ECM & bracket assembly`
3. Battery tray
