Components And Components Location: Components

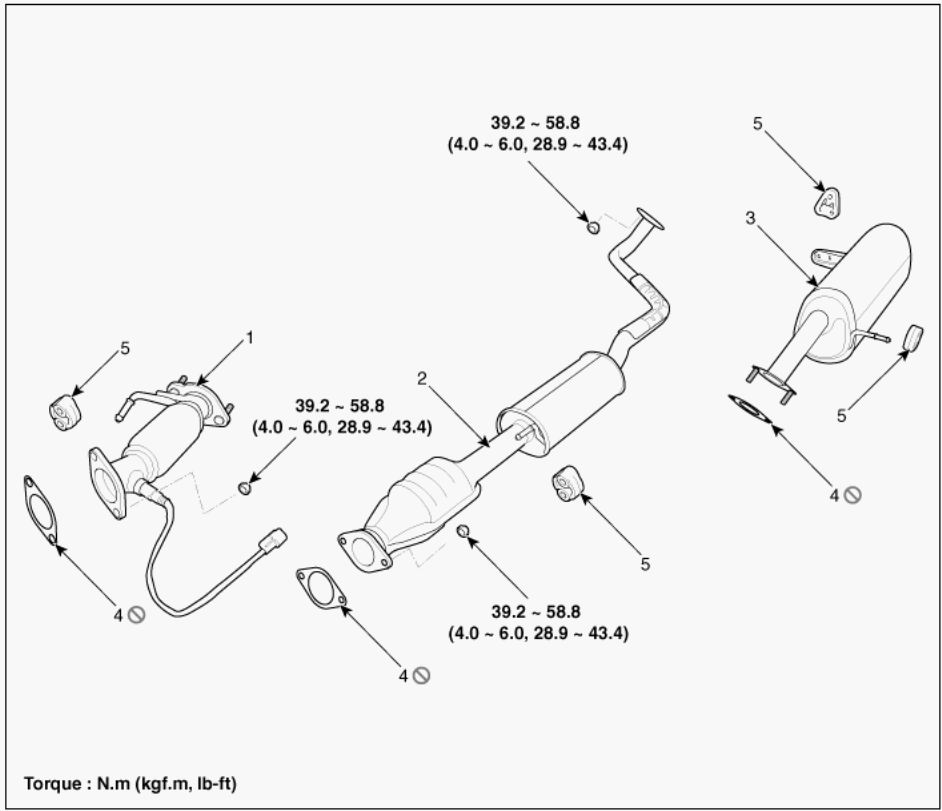

Fig 1: Muffler And Catalytic Converter Replacement Components With Torque Specifications
G08804191Courtesy of HYUNDAI MOTOR AMERICA
1. Front muffler 4. Gasket
2. Catalytic converter & center muffler assembly 5. Hanger`
3. Main muffler
